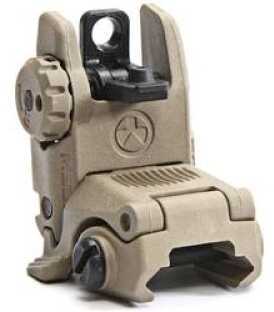

The MBUS (Magpul Back-Up Sight) is a low-cost, color injection molded, folding back-up sight.
The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15/M16 platform.
Made in U.S.A.
Features:
- Impact resistant polymer construction provides light weight and resists operational abuse
- Spring-loaded flip up sight easily activated from either side or by pressing the top
- Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
- Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
- Protective wings shield the dual, same plane flip apertures
- Sight can still be folded with either large or small aperture in position
- Detent knob easily and positively adjusts windage
Specifications:
- Weight, w/ hardware: 1.3 oz.
- Height above rail, stowed: ~0.51 in.
- Center of aperture to top of rail: 1.42 in.
- Length, stowed: 2.6 in.
- Length, deployed: 1.5 in.
Specification | Value | |
---|---|---|
MFG NO | 248-FDE | |
SKU | 11040316 | |
UPC | 873750004365 |
Magpul Industries | ||
Phone: | ||
Email: | magpul@magpul.com | |
Website: | http://www.magpul.com | |
Address: |
1011 Carbon Ct Boulder, CO 80308 |
Quantity Available | Price |
---|---|
50 | $42.16 |
616 | $43.98 |
208 | $44.16 |
