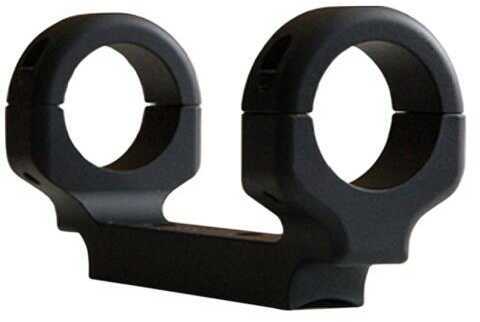

DNZ Products Game Reaper- Ruger American 30mm SA Mount
Ruger American (centerfire):
Mount fits both left and right hand firearms.
Base screws are 6-48 X 1/4? long. Ring screws are 6-40 X 5/8? long. Both screws use a 7/64? Allen wrench.
Short action – Outside to outside of rings is 3.97?. Standard rings are .63? wide and have 2 ring screws per ring. 4 Hole to hole spacing dimensions are .86?, 3.01?, .86?. Height of mounts from top of receiver to centerline of scope tube is - low .92?, medium 1.05?, and high 1.17?.
Specifications:
- Precision machined from a solid block of top-grade billet aluminum
- Custom made to fit each type of firearm and align perfectly with your rifle’s receiver
- No moving parts between the firearm and the scope
- 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security
- Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight
- Made in the USA
Manufacturer: DNZ Products
MFG Number: 16280
UPC: 879956006011
Specification | Value | |
---|---|---|
MFG NO | 16280 | |
SKU | 11189642 | |
UPC | 879956006011 |
DNZ Products (Dednutz) | ||
Phone: | 919-777-9608 | |
Email: | ||
Website: | http://www.dnzproducts.com | |
Address: |
2710 Wilkins Drive Sanford, NC 27330 |
