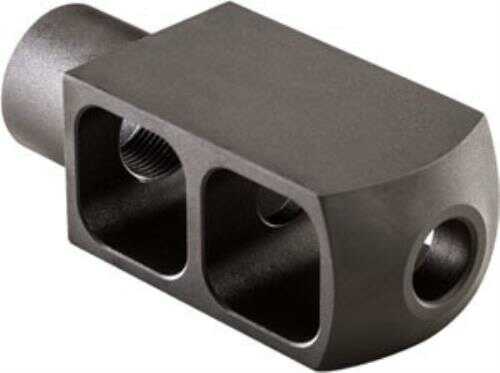

Characteristics: Taking its design from artillery brakes, this unit uses two large impingement baffles in an open form construction to achieve probably the best recoil reduction of the .50 Beowulf® brakes at subjectively 40% to 50%. Blast is directed sideways from the two opposite facing ports on each side. The unit is symmetrical in operation and does not provide reduction of muzzle jump. Back-blast to the shooter is negligible, but there is a noticeable blast to either side of the weapon.
Dimensions: This muzzle brake has an overall length of 3.5 inches and adds 2.6 inches to the length of the barrel. The outer diameter at the muzzle end of the brake is 1.0 inches. The widest width (left to right) is 1.5 inches and the smallest width (top to bottom) is 1.25 inches.
