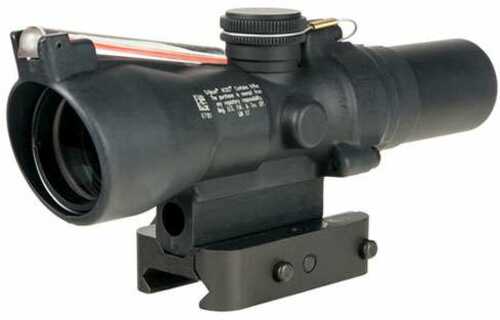

If you’ve heard of the Trijicon ACOG (Advanced Combat Optical Gunsight), you likely know about the legendary performance this platform offers. The ACOG 1.5x24 model, offers a battery-free dual illuminated reticle pattern that works in any lighting conditions, with the added freedom of eye movement afforded by a larger exit pupil and longer eye relief.
The Trijicon Compact ACOG Mount w/ Q-LOC Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Matte black anodized finish
Made in the USA
Length x Width x Height: 5.8 in x 2.1 in x 2.6 in (147.32mm x 53.34mm x 66.04mm)
Weight: 8.4 oz. (238.14g)
Magnification: 1.5x
Objective Size: 24mm
Reticle Pattern: Crosshair
Day Reticle Color: Red
Night Reticle Color: Red
Bindon Aiming Concept (BAC): Yes
Illumination Source: Fiber Optics & Tritium
Power Source: Fiber Optics & Tritium
Adjustment: 2 clicks per in. @100 yards
Exit Pupil: 0.63 in. (16mm)
Field of View (degrees): 4.9°
Field of View (feet): 25.6 ft. @ 100 yds. (8.53m @ 100m)
