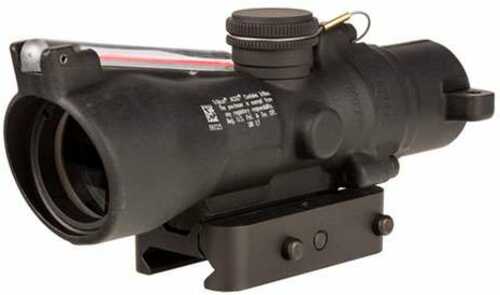

TRIJICON ACOG 3X24 COMPACT LOW RED HRSSHOE
The Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG. Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.
The Trijicon Compact ACOG Mount w/ Q-LOC Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Matte black anodized finish
Made in the USA
Length x Width x Height: 4.9 in x 2.2 in x 2.3 in (124.46mm x 55.88mm x 58.42mm)
Weight: 7.9 oz. (223.96g)
Magnification: 3x
Objective Size: 24mm
Reticle Pattern: Horseshoe Dot
Day Reticle Color: Red
Night Reticle Color: Red
Bullet Drop Compensating (BDC): Yes
Caliber: .223 / 55gr.
Bindon Aiming Concept (BAC): Yes
Illumination Source: Fiber Optics & Tritium
Power Source: Fiber Optics & Tritium
Adjustment: 0.5 MOA per click
Eye Relief: 2.1 in. (53.34mm)
Exit Pupil: 0.39 in. (9.91mm)
Field of View (feet): 29.31 ft.-5.6 ft. @ 100 yds. (9.77-1.87m @ 100m)
Mount: Trijicon Q-LOC Technology Mount
Housing Material: Forged Aluminum
Finish: Matte Black
Specification | Value | |
---|---|---|
MFG NO | TA50C400354 | |
SKU | 11520028 | |
UPC | NOUPC348176 |
