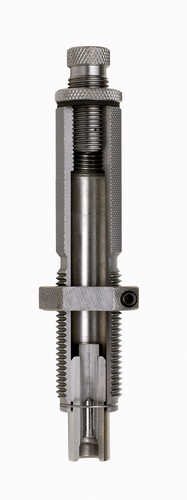

Hornady Seating dies are the easiest to use in the industry. Precision seating is achieved by combining an in-line bullet seating sleeve that properly aligns bullets in the cartridge before any pressure is applied, with a simple seating adjustment screw for the seating stem that is as reliable as it is simple. Easy maintenance is achieved with a simple retaining ring that is easy to remove for thorough cleaning with no special tools required. A built in, optional use roll or taper crimp feature allows you to crimp at the same time that you seat the bullet, or apply no crimp at all with a simple adjustment.
For consistent, hassle-free seating and crimping, Hornady seating dies are impossible to beat. A floating alignment insert aligns the bullet and case neck before any pressure is applied, below the die body for high concentricity and ease of use. The cartridge then pushes the floating crimp and seat insert into the die body, firmly and concentrically seating the bullet in the case. The die also quickly and easily disassembles for cleaning, simply by removing the retainer ring.
Hornady is one of the most respected names in ammunition, and continues to innovate and improve their products. Improvements are made to Hornady's dies every year, and are included in all newly manufactured dies. Feature highlights include the all-new Zip-Spindle design, Sure-Loc rings, an elliptical expander, and highly polished interiors.
Lock Rings with Wrench Flats: The Hornady Sure-Loc lock rings clamp around the entire die applying constant pressure across the threads to hold the ring in place. The locking screw tightens the ring without ever coming into contact with the threads, eliminating possible damage from pliers.
Seater Adjustment Screw: Seater adjustment screw easily adjusts for bullet seating depths.
Compression Washer: This washer provides the necessary tension to make fine adjustments easier, and keep the die set in place.
Retainer Ring: Locking retainer spring removes in seconds for easy disassembly and cleaning of the die.
In-line Bullet Seating System: Our seating system holds the bullet, the case neck and the seating stem in perfect alignment in the sleeve BEFORE the bullet enters the neck of the case. The system includes a floating bullet alignment sleeve, a floating steel seating stem and a built-in crimper for benchrest precision. Bullets are aligned in the sleeve as they enter the die for optimum seating and enhanced accuracy.
Built-in Crimper: The built-in crimper gives you the option of crimping without the need for an extra crimp die thus saving a station on your press.
Specifications and Features:
Polished Die Body
In-Line Seating Assembly
Built-in Crimper
Seating Adjustment Screw
Lock Rings With Wrench Flats
Quick Disassembly Retainer Ring
Compression Washer for fine adjustments
Includes:
Seating Die
Sure-Lock Ring
Allen key for Sure-Loc Ring
Die Box
