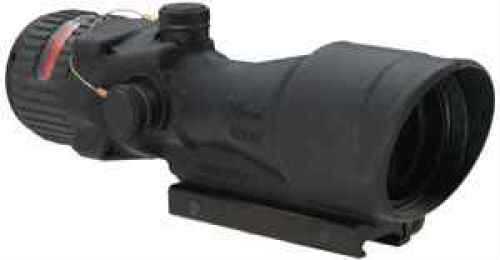

6x48 Trijicon ACOG with Red Chevron Reticle and Accessory M1913 Rail
The military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG 6x48. Powered by Trijicon’s patented fiber optics and tritium-based technology, the new TA648MGO-308 ACOG reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 7.62mm M80 out to 1200 meters. To further improve target acquisition and hit potential, the ACOG 6x48 incorporates Trijicon’s Bindon Aiming Concept (BAC) – a revolutionary both-eyes-open method of aiming. Like other members of the Trijicon ACOG line, the ACOG 6x48 is battery free and waterproof to 500 feet.
This model of the 6x48 ACOG features an M1913 Military rail for mounting of additional Trijicon products such as the RMR and Reflex.
The TA648MGO-308 also includes:
- 1 Picatinny Rail Adapter (TA75)
- 1 LENSPEN (LENSPEN)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
Specifications:
- Magnification: 6
- Objective Size: 48
- Bullet Drop Compensator: Yes
- Length (in): 9.00
- Weight (oz): 39.30
- Illumination source: Fiber Optics & Tritium
- Reticle Pattern: Chevron
- Day Reticle Color: Red
- Night Reticle Color: Red
- Calibration: .308
- Bindon Aiming Concept: Y
- Eye Relief (in): 2.70
- Exit Pupil (mm): 8.00
- Field of View (°): 3.30
- Field of View @ 100yrds (ft): 17.00
- Adjustment @ 100 yds (clicks/in): 4
- Mount: TA75
- Mount On/Comes With: TA75
- Housing Material: Forged Aluminum
6x48 Illuminated Red Chevron 308 M1913
Specification | Value | |
---|---|---|
MFG NO | TA648MGO-308 | |
SKU | 71110 | |
UPC | 719307302297 |
Trijicon | ||
Phone: | 248-960-7700 | |
Email: | bromines@trijicon.com | |
Website: | http://www.trijicon-inc.com | |
Address: |
49385 Shafer Avenue Wixom, MI 48393 |
Quantity Available | Price |
---|---|
2 | $2,167.86 |
