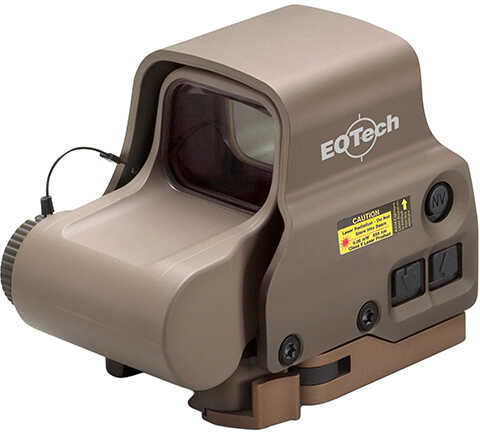

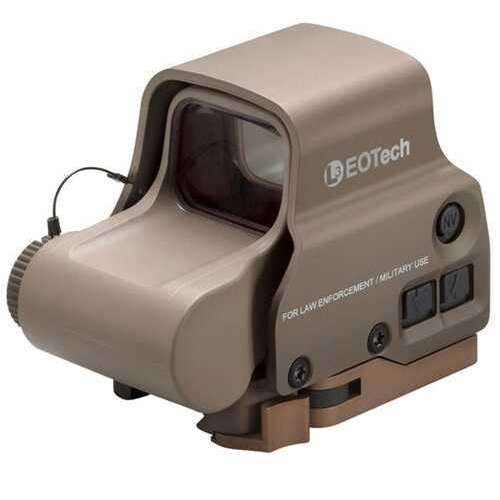

EOTech Side Button Night Vision Compatible Sight 65 MOA Ring And Two 1 MOA Dots Tan Cr123 Lithium Battery Quick Disconne

Eotech has done it again by making the best even better. Offering true 2 eyes open shooting, a transversely mounted lithium 123 battery, and 7 mm raised base offering iron sight access, the new Extreme-XPS (EXPS) features easy to adjust side buttons and a single, quick release throw lever for easy attachment and removal.



Features :

- Reticle is a 65MOA circle with two 1MOA aiming dots

- Single transverse 123 battery to reduce sight length

- Shortened base only requires at most 2 3/4 inch of rail space compared to the 4 inch N battery sights

- Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved

- Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle

- Average battery life at brightness level 12 is roughly 500-600 hours, 3X battery life of N cell sights

- Side buttons, NV compatible with a single quick detach throw lever



Specifications :

Operation



- Optics: Transmission holography - parallax free

- Magnification: 1x

- Eye Relief: Unlimited

- Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)

- Weight: 11.2 oz (317grams)

- Temperature: -40 to 150 F

- Waterproof: Submersible to 33 ft depth

- Sealing: Fogproof internal optics

- Color/Finish: Tan

- Adjustment (per click): 0.5 MOA (1/2" at 100 yds)

- Adjustment Range: +/- 40 MOA travel

- Mount: 1" Weaver or (MIL-STD-1913) railAdjustable for width variation

- Return to Zero: Repeatable to within 2 MOA after re-mounting

- Night Vision Compatibility: 10 brightness setting (generation I-III+)



Heads-Up-Display Window



- Optical Surfaces: Anti-glare coating

- Window Dimensions: 1.20" x 0.85" (30 x 23mm)

- Front Window Material: 1/8" solid glass

- Rear Window Material: Shatter resistant laminate (3/16" thick)

- Field of View (100 yds): 30 yds (28m) at a 4" eye relief



Electrical



- Brightness Adjustment Range: 146,000:1 brightest to lowest

- Night Vision Brightness Range: 1280:1 with NV switch engaged

- Power Source: (1) 123 lithium battery

- Battery Life: 600 continuous hours at nominal setting 12

- Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)

- Auto Battery Check Indicator: Flashing reticle upon start-up

- Auto Shut-down: At 8 hrs- programmable to 4 hrs

Reticle Pattern 65MOA Ring/(2)1MOA Dots, Tan
