ATN PVS7-3 NVGOPVS730

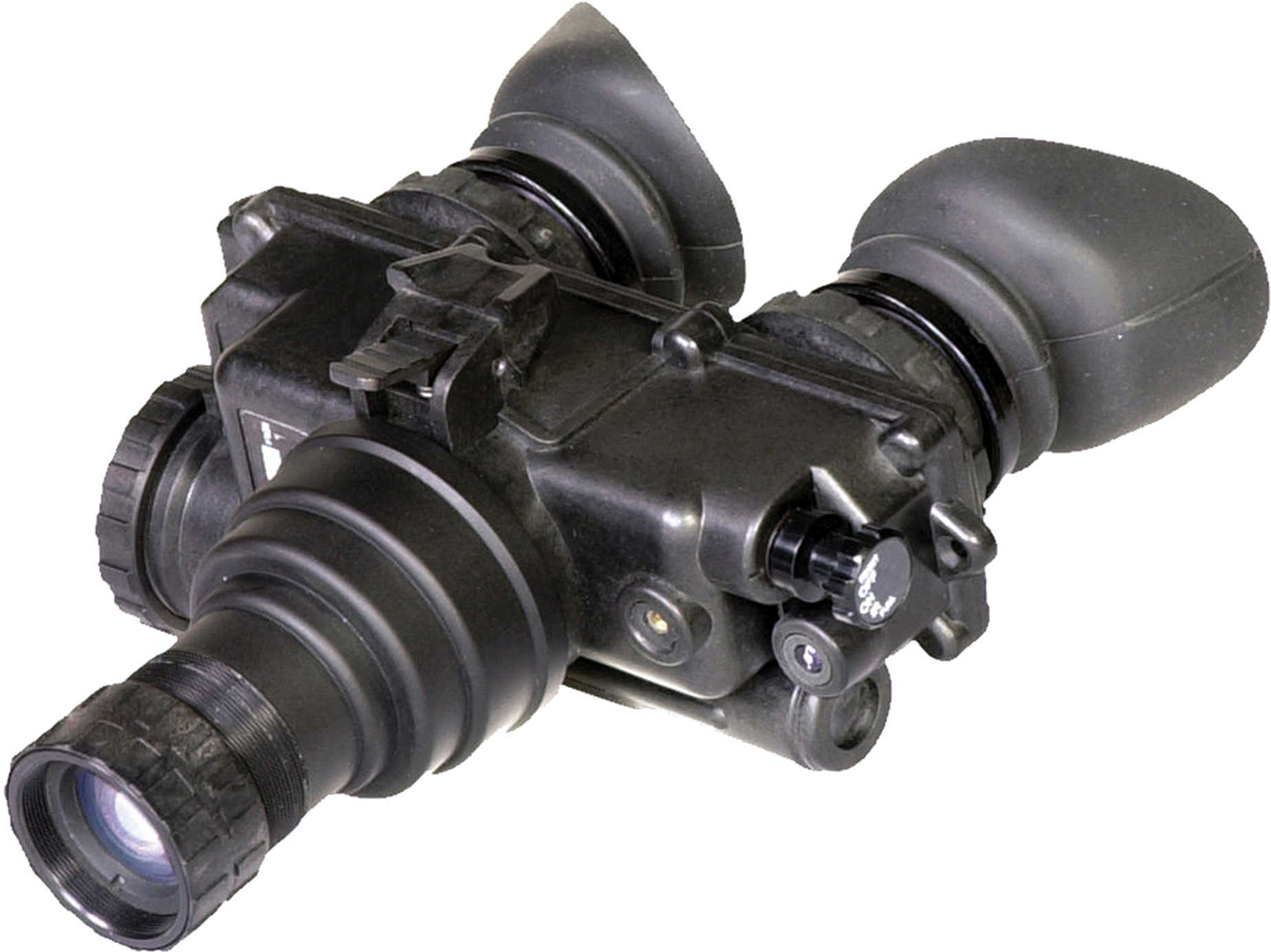

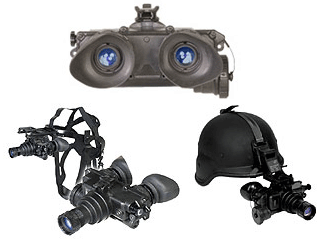

ATN PVS7 is robust, dependable, high performance night vision goggle. This model is identical to AN/PVS-7 model adopted as a standard issue to US Army ground troops, designed to assist viewing provide reliable service in the most unfavorable conditions. Full U.S.Mil Spec body with goggle assembly, soft carrying case and, demist shield, sacrificial filter for objective lenses, shoulder strap, head-mount assembly with 3 brow pads, lens tissue, neck cord and front lens cap.



Features :

- Adjustable head mount

- IR illuminator

- Momentary IR-on switch

- Automatic high-light cutoff

- Flexible carrying case

- Low Battery Indicator



Specifications



- Intensifier Tube 3rd Gen.

- Total darkness tech. standard

- Magnification: 1X

- Detection Range: 300 m

- Recognition Range: 250 m

- Lens System: F 1:1.2, F35MM

- Resolution: 64lp/mm Typical

- Signal to noise ratio 20 Typical

- FOV 40 deg.

- Diopter Adjustment: +2/-6

- Power Supply: Two 1.5 volt AA size

- Range Of Focus: 0.25M to infinity

- Controls: Digital

- Battery Life: 50 Hours

- Dimensions(MM): 162 X 76 X 152

- Dimensions('): 6,4 X 3 X 6

- Weight: 0,68 KG/1.5 LB

- Operation temperature -40 +50 degree C

- Storage temperature -50 +70 degree C
