ATN NVG7 Goggles WPT NVGONVG7W0

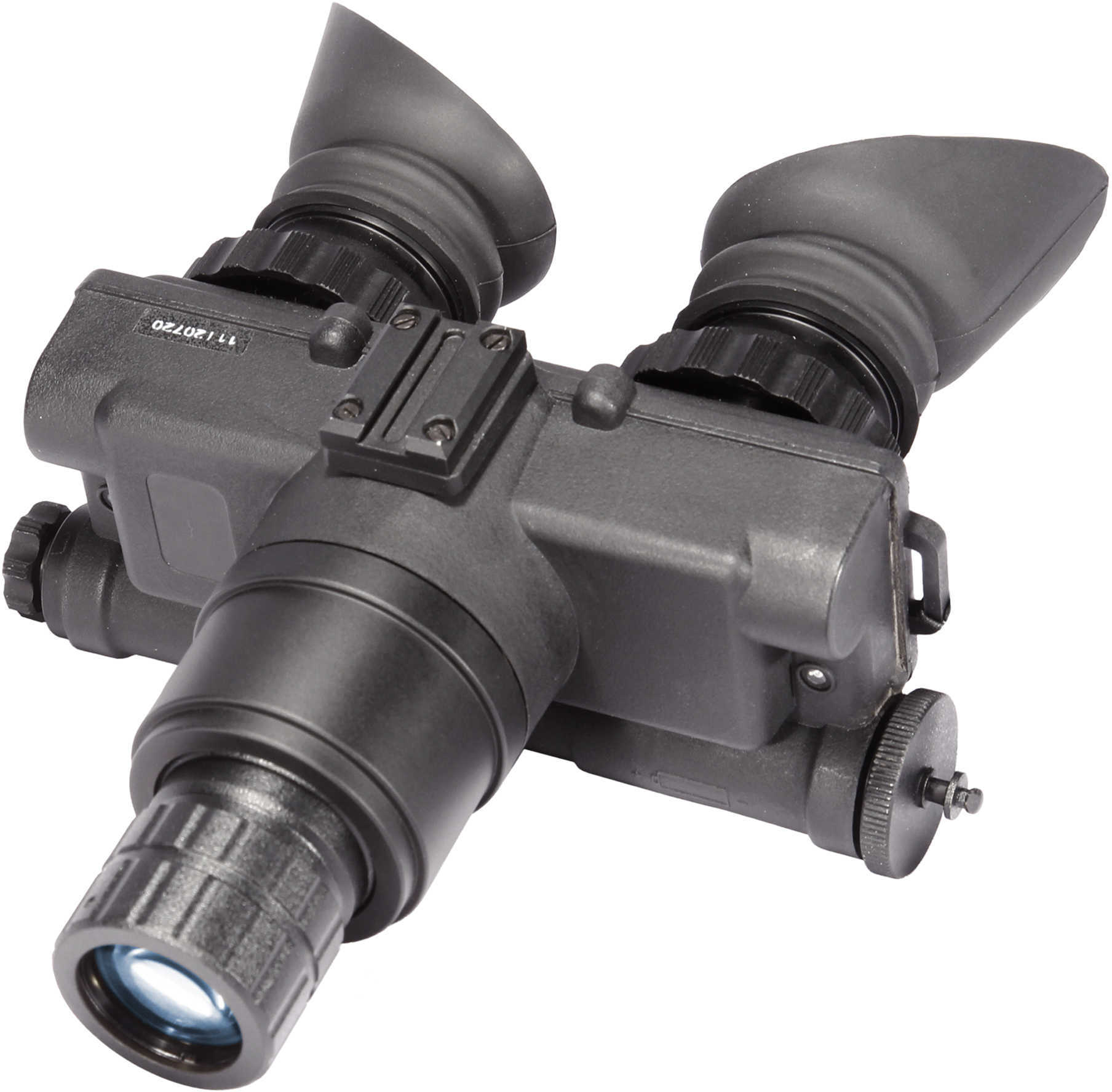

ATN NVG7-WPT™ Night Vision Goggles





Lightweight, rugged and a top notch performer the NVG-7-WPT™ is an exceptional choice for hands-free usage. This model features high resolution image intensifier, auto-brightness, and bright source shut-off.

NVG-7-WPT™ goggles also have a built-in IR for total darkness with indicator ON light within the FOV and flip. One CR123A, case and manual are included. ATN NVG-7-WPT™ is an excellent choice for hands-free night vision applications.



Features:



- Lightweight, compact rugged Goggle system

- Multi-purpose: Hand-held, head-mounted or helmetmounted

- Comfortable, flip-up headgear

- Multi-coated all-glass optics

- Wide angle infrared illuminator

- Adjustable Interpupillary Distance

- Optional 3x, 5x and 8x lenses available

- Weather and fog resistant



Specifications:



Total Darkness IR System:Yes

"SMART" Technology: No

Multi-Purpose System: No

IIT Generation: WPT

Photocathode Type: Multi-Alkali

Resolution:45-54 lp/mm

Signal to Noise Ratio:18-24

Figure of Merit

MTTF - Mean Time Before Failure: 10,000 hours

Magnification:1x

Lens System: F1.2, 26 mm

Proshield Lens Coating:Yes

Fov:40°

Range of Focus: 1 m to infinity

Diopter Adjustment: -6 to +5

Controls: Direct

Automatic Brightness Control: Yes

Bright Light Cut-off: Yes

Automatic Shut-off System: Yes

Infrared Illuminator: Yes

IR Indicator: Yes

Low Battery Indicator: Yes

Power Supply: 1x3 V CR123A type battery

Battery Life: 60 hrs

Environmental Rating: Waterproof

MIL-STD-810: No

Operating Temperature: -40 to +50 °C

Storage Temperature: -50 to +70 °C

Dimensions: 160 x 150 x 75 mm (6.3" x 6" x 3")

Weight: 0.5 kg / 1.1 lbs
