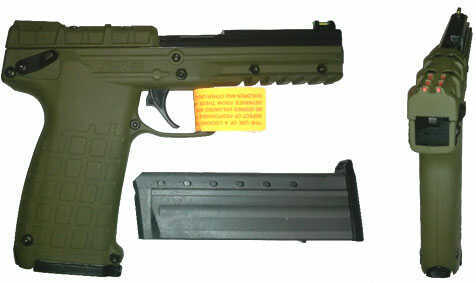

The PMR-30 is a light weight, full size pistol chambered for the flat-shooting .22 Magnum cartridge (.22WMR). The PMR-30 operates on a unique hybrid blowback/locked-breech system. This operation system allows for the use of a wide variety of ammunition as it seamlessly adjusts between locked breach and blowback operation, depending on the pressure of the cartridge. It uses a double stack magazine of a new design that holds 30 rounds and fits completely in the grip of the pistol. The trigger is a crisp single action with an over-travel stop. The manual safety is a thumb activated ambidextrous safety lever (up for SAFE, down for FIRE). The slide locks back after the last shot and a manual slide lock lever is also provided. The light, crisp trigger pull and fiber optic sights make the PMR-30 ideal for target shooting and hunting small game.
Slide and barrel are 4140 blued steel, Green Polymer frame and Grip, slide cover, trigger, Mag release, and safety levers are glass reinforced Nylon (Zytel), much like other Kel-Tec Pistols. Magazine is Also Zytel and holds 30 rounds, with round count ports. Other features include: dual opposing extractors for reliability, heel magazine release to aid in magazine retention, dovetailed aluminum front sight, Picatinny accessory rail under the barrel, Urethane recoil buffer, captive coaxial recoil springs. PMR30 disassembles for cleaning by removal of a single pin.
Technical Specifications
Calibers: .22 Magnum (.22WMR)
Weight unloaded: 13.6oz. 385.6g
Loaded Magazine: 6oz. 170.1g
Length: 7.9" 200.7mm
Height: 5.8" 147.3mm
Width: 1.3" 33.0mm
Barrel length: 4.3" 109.2mm
Sight radius: 6.9" 175.3mm
Energy (40gr): 138ft-lbs 187J
Capacity: 30 rounds
Trigger pull: 4-6 lbs 17.8-26.7N
The information below comes from our Gun Caliber Dictionary and is for
general reference only. It does not describe the specifications of this
particular item.
The 22 Magnum is properly called the 22 Winchester Magnum Rimfire or 22 WMR. It uses a considerably longer 1.0551-inch than the .22 Long Rifle and propels a 40-grain jacketed bullet at considerably higher velocity, up to 1910 feet per second. Other choices include lighter bullets, down to 30 grains at 2250 fps; and heavier bullets up to 50 grains at 1530 fps. The 22 Magnum was introduced by Winchester in 1959. It has remained popular ever since, but although it is much faster and more powerful it has never approached the 22 Long Rifle in popularity. It is offered by all firms who load rimfire ammunition, with wide choices in both rifles and handguns. A historic problem is that it has been very difficult to make it function consistently in semiautomatics, but it offers capability for small and game varmints to at least 125 yards, thus filling a gap between the .22 Long Rifle and centerfire .22 Hornet.
—
Craig Boddington
