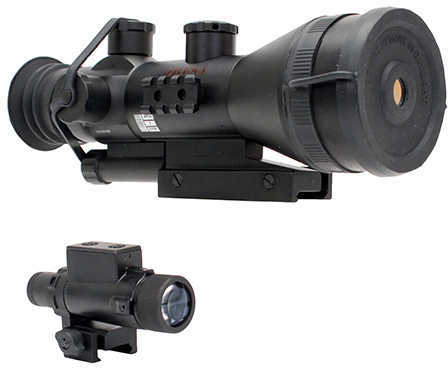

American Technology Network Ares 4X Na Black 64 Lp/mm Resolution NVWSARS430
Item #11049714MPN NVWSARS430UPC 658175232124
ARES4x 3
The ARES series provide the user with a rugged, easy to use and accurate night vision weapon sight. Fast infra-red sensitive optics coupled with quality image tubes provide high resolution clear images for outstanding target acquisition and aiming capabilities.
Rugged, ease of use and accurate are just a few of the features these scopes have to offer.
Designed for optimal performance for both professional and sporting uses the ARES is the next generation of ATN scopes.
Features :
- Superior quality Multi-coated all-glass optics
- Precision windage and elevation adjustments
- ”RED ON GREEN” reticle system with 1/6 MOA adjustment
- Automatic brightness control (ABC) for tube protection
- One-knob operation
- Illuminated center red reticle for optimal contrast against a dark or light target
- Mounts to standard weaver rails
- Use 1 AA type battery
- Limited Two-Year Warranty
Specification :
- Total Darkness IR System: Yes
- "SMART" Technology: No
- IIT Generation: 3
- Photocathode Type: GaAs
- Resolution: 64 lp/mm
-Signal to Noise Ratio: 22 Typical
-Figure of Merit: 1600 Typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 4x
- Proshield Lens Coating: Yes
- Fov: 7.5°
- Range of Focus: 10 m to infinity
- Diopter Adjustment: -4 to +6
- Controls: Yes
- Remote Control: No
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Infrared Illuminator: Detachable IR450
- IR Indicator: Yes
- Low Battery Indicator: Yes (in FOV)
- Power Supply: 1 x 1.5 V AA type battery
- Battery Life: 30 hrs
- Reticle System: Red on Green
- Windage & Elewation Adjustment: 1/6 MOA
- Environmental Rating: Waterproof
- MIL-STD-810: No
- Operating Temperature: -40 to +50 °C
- Storage Temperature: -50 to +70 °C
- Dimensions; 244 x 94 x 88 mm, 9.75 x 3.75 x 3.5"
