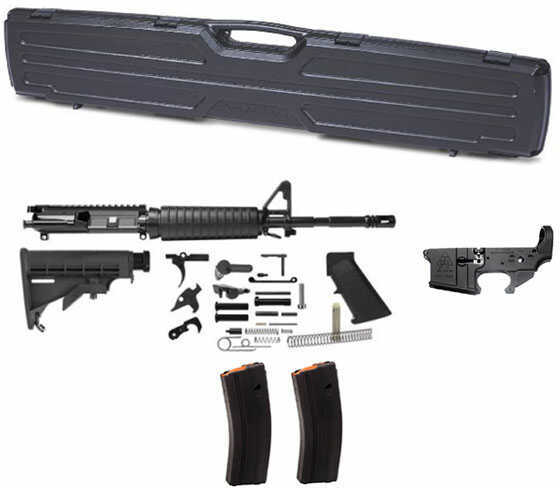

AR-15 M4 A3 Del-Ton Carbine Kit Complete with lower receiver 2 C-Products Stainless Steel Magazines and a Hard Gun Case. 5.56x45mm NATO 1 in 9" Twist 16" Barrel Upper Assembly, Lower Parts Kit, M4 Collapsible Buttstock, Del-Ton lower receiver.
Can be completely assembled in 30 minutes with no special tools
This Del-Ton M4 Carbine Kit includes everything needed to built a AR-15 M4 A3 fully functional rifle. This kit features an assembled Del-Ton A3 Flat-Top Upper Receiver with a 16" M4 Contour Barrel, Carbine-Length gas system, F-Marked Front Sight Assembly, 2-Piece CAR-Style Handguards and an A2 Flash Hider. The barrel's 5.56x45mm NATO Chamber, M4 Feed Ramps and 1 in 9" Twist rifling ensure reliable feeding and functioning with a wide variety of both commercial and surplus ammunition. The Bolt Carrier is machined from 8620 Steel for strength, incorporates a properly staked, chrome lined gas key, and houses a Carpenter 158 Steel Bolt that has been High Pressure Tested and Magnetic Particle Inspected to guarantee a consistent, defect-free part.
The kit includes a Lower Receiver and complete Lower Receiver Parts kit that is ready for installation into the host stripped lower. A M4-Style Collapsible Buttstock Assembly rounds out the package with a Mil-Spec diameter buffer tube, carbine buffer and buffer spring. Upper receiver is fully assembled at the factory, lower parts kit and stock assembly will need to be installed by the end-user.
Forged 7075 T6 aluminum AR-15 lower receiver that has been hard coat anodized.
Del-Ton, Inc. uses U.S made mil-spec parts for all lower receiver parts and accessories. We proudly manufacture all of our pieces here in the U.S using the best materials available!
AR-15 lower receiver
- Forged 7075 T6 Aluminum that has been hard coat anodized
- Action: Semi Auto
- Material: 7075 T6 Aluminum
- Color: Black
Upper Assembly:
•Upper Receiver: A3 Flat-Top
•Barrel Length: 16"
•Barrel Contour: M4
•Barrel Material: 4140 Chrome Moly Vanadium Steel
•Muzzle Thread Pattern: 1/2"-28
•Barrel Finish: Manganese Phosphate (Parkerized)
•Twist Rate: 1 in 9"
•Chamber: 5.56x45mm NATO
•M4 Feed Ramps: Yes
•Muzzle Device: A2 Flash Hider
•Gas System Length: Carbine
•Gas Block Diameter: 0.750"
•Handguard: 2-Piece Polymer, CAR-Style w/Heatshield
•Sights: F-Marked Fixed Front, No Rear
Lower Parts Kit Includes:
•Bolt Catch
•Bolt Catch Plunger
•Bolt Catch Roll Pin
•Bolt Catch Spring
•Buffer Retainer
•Buffer Retainer Spring
•Disconnector
•Disconnector Spring
•Hammer
•Hammer Pin
•Hammer Spring
•Magazine Catch
•Magazine Catch Button
•Magazine Catch Spring
•A2 Pistol Grip
•Pistol Grip Lock Washer
•Pistol Grip Screw
•Pivot Pin
•Pivot Pin Detent
•Pivot Pin Detent Spring
•Safety Selector
•Safety Selector Detent
•Safety Selector Detent Spring
•Takedown Pin
•Takedown Pin Detent
•Takedown Pin Detent Spring
•Trigger
•Trigger Guard
•Trigger Guard Roll Pin
•Trigger Pin
•Trigger Spring
•Stock: M4-Style Collapsible, Polymer
•Receiver Extension: Mil-Spec Diameter
•Buffer: Carbine
•Buffer Spring: Carbine
•Receiver Extension Lock Ring (Castle Nut) Included
Manufacturer: DEL-TON
The information below comes from our Gun Caliber Dictionary and is for
general reference only. It does not describe the specifications of this
particular item.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles.
—
Craig Boddington
