ATN NVM-14-3A Night Vision Monocular Only
System Description

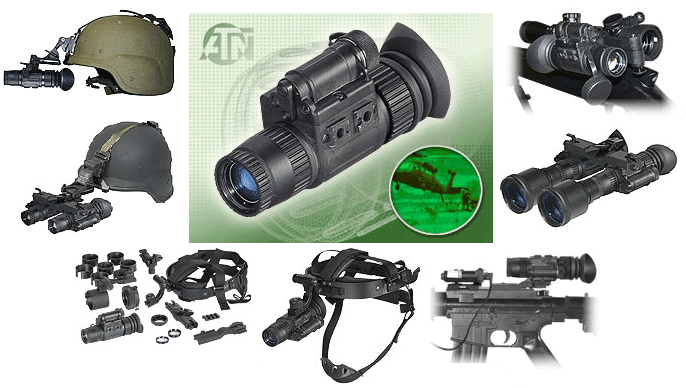

The ATN NVM-14 is a hand-held, head-mounted, helmet-mounted, or weapon-mounted night vision system that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus, and eyepiece focus. The device is also equipped with an infrared light-emitting source. NVM-14 Night Vision monocular utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the monocular consists of: an objective lens, an image intensifier tube and an eyepiece.
• Multi Purpose unit
• Compact yet rugged design
• Hand held monocular
• Hands free goggle (with optional head gear or helmet mount)
• Night-time photography (with use of optional camera adapter)
• Day/Night weapon sight (with the use of the optional weapon mount)
• Waterproof
System Specifications
Intensifier Tube 3rd Gen. Select Alpha
Magnification 1X
f-Number 1.2
Field of View 40 degrees
Eyepiece Diopter Adj. -6 to +2
Resolution 64-72 lp/mm
Signal to noise ratio 20-28
Photocathode Sensitivity 1900-2600
Detection range 325
Recognition range 275
Eye Relief 25 mm
Focusing range 0,25m to infinity
Voltage 3.0 VDC or 1.5 VDC
Power Requirements 1 CR123A or 1 AA
IR Illumination Range 20 meters
1 CR123A battery 50 hours
Weight (with battery) 0.34 kg (0.75 lbs)
Length 140 mm
Width 50 mm
Height 69 mm
Operation temperature -40 +50°C
Storage temperature -50 +70°C
Dimension 120 x 70 x 50 mm
4.7" x 2.8" x 2.0"
Monocular Only
Mfg No: Nvmpan143a
Manufacturer: Atn
Atn_Nvmpan143a
