ATN PVS14 3A Md: NVMPPVS143A

Atn Pvs14 3A

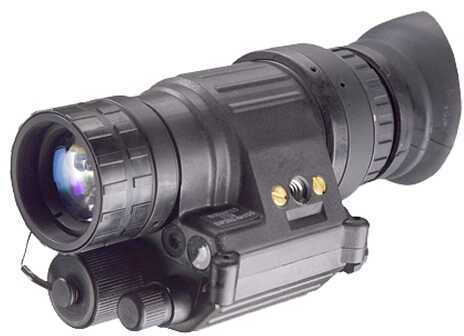

ATNs PVS14-3A (1AA) are rugged, lightweight and versatile Night Vision Monocular designed for the most demanding of nighttime applications. The ATN PVS14-3A (1AA) can be handheld, head/helmet-mounted for hands free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14-3A (1AA) is an outstanding choice for professional night vision applications.



Features :

- US Military design

- Multi Purpose Unit

- Hand held monocular

- Hands-free goggle (optional helmet mount)

- Mil Spec Headgear



Specifications :

- Total Darkness IR System: Yes

- Smart Technology: No

- Multi-Purpose System: Yes

- IIT Generation: 3

- Photocathode Type: Thin Film GaAs

- Resolution: 64-72 lp/mm

- Signal to Noise Ratio: 26 Typical

- Figure of Merit: 1800 Typical

- MTTF (Mean Time Before Failure): 10,000 hours

- Magnification: 1x

- Lens System: F1.2, 26mm

- Proshield Lens Coating: Yes

- Field of View: 40°

- Range of Focus: 0.25m to Infinity

- Diopter Adjustment: -5 to +2

- Controls: Direct

- Automatic Brightness Control: Yes

- Bright Light Cut-off: Yes

- Automatic Shut-off System: Yes

- Infrared Illuminator: Yes

- IR Indicator: Yes

- Low Battery Indicator: Yes

- Power Supply: 1 - 1.5 Volt AA size

- Battery Life: 50 Hours

- Environmental Rating: Waterproof

- MIL-STD-810: Complies

- Operating Temperature: -40 to +50 °C

- Storage Temperature: -50 to +70 °C

- Dimensions: 4.5" x 2.2" x 2"

- Weight: 0.68 lbs
Mfg No: Nvmppvs143a
Manufacturer: ATN Corporation

Shipping Information
Weight: 2.5 pounds.
Dimensions: 12.5 (L) x 7.25 (W) x 7.125 (H) inches.:
