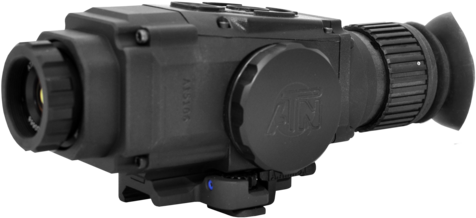

ATN TIWSMT331N THOR-336 Night Vision Thermal Scope 1-4x 800x600 Resolution (60Hz) Black
This model, of the ThOR Thermal Weapon Scopes, is lightweight and small enough to fit in the palm of your hand, yet it's rugged and durable. The entire system is built in the USA, utilizing Mil-Spec lenses that make the ThOR battle worthy for most any mission or outdoor activity. Each system features a digital menu with a variety of options and adjustments allowing the user to customize the system. ThOR features a color OLED display giving a sharp color reticle every time. It also gives the user the option to switch to full color mode and overlay it with either a black, green, or red reticle depending on the conditions and environment. The ThOR system also has no screws or springs that can create targeting errors. All units feature E-Zoom to expand optical magnification. It also features a video-out connection and cable which allow nighttime operation. It features a frame rate of 30Hz.
Specifications:
- Magnification: 1-4x - Type: Thermal Scope - Resolution: 800x600 pixels - Controls: Digital - Battery Life: 8+ Hours - Optical Magnification: 1.5: X - Field of View: 24° x 18° - Sensor (microbolometer): 336 x 256: px - Frame Rate: 60: Hz - Spectral Response: 7 - 14: ?m - Display: Color OLED matrix, SVGA< 800x600, Color background + color reticules/800 x 600 - Type: Uncooled - Material: Vanadium oxide (VOx) - Video Output: Yes - Thermal Sensitivity: < 50: mK - Lens System: 19 mm - Eye Relief: 65: mm - E-Zoom: 2.4x, 4.8x - Distance of the human detection: 625: m - Distance of the human recognition: 280: m - Distance of the human identification: 170: m - Distance of the vehicle detection: 1375: m - Distance of the vehicle recognition: 650: m - Distance of the vehicle identification: 375: m - Reticle: No/Multiple Reticles to Choose From - Reticle Color: Red, Green, Blue, White & Black - Polarity Control: White hot / Black hot / Multiple Color Modes - Start up Time: < 3: sec - Environmental Rating: Waterproof / Dustproof - Battery Type: 3 x 3V (CR123A) - Battery Life: 8+: hours - Weapon mountable: No - Low Battery Indicator: Yes - Iconology: Quick access, Icon driven feature controls - Dimensions: 6.73" x 2.72" x 2.87" - Weight: 1.5: lbs - Weight kg: 0.68: kg - Brightness Adjustment: Manual - Sharpness Adjustment: Automatic - Mounting Bracket: MIL-STD 1913 Picatinny (Quick)
