Cascade Industry Brownells Eotech ATPIAL (AN/PEQ-15) - Advanced Target Pointer/Illuminator/Aiming Laser, Tan

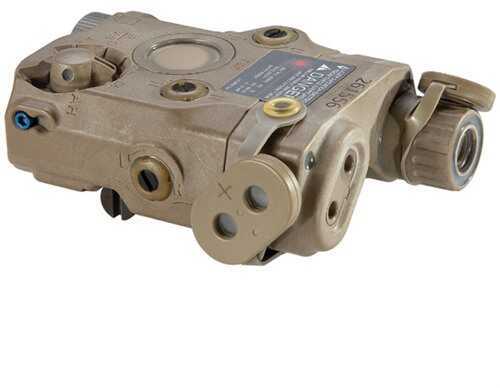

Brownells ATPIAL (AN/PEQ-15) - Advanced Target Pointer/Illuminator/Aiming Laser, Tan
The Advanced Target Pointer/Illuminator/Aiming Laser (ATPIAL) is small, lightweight and easy to use. The aiming system has integrated infrared and visible aiming lasers and an infrared illuminator. The ATPIAL (AN/PEQ-15) has been battle-tested for use on small arms and crew-served weapons. This device is the U.S. Armed Forces standard for night direct-fire aiming and illumination.Some models are restricted for use by law enforcement and military organizations. Contact EOTech at 888-368-4656 or email for more information.The ATP-000-A18Vis is a visible only model that was created to support tactical training requirements for law enforcement and military organizations.


Features:

-Length/Width/Height: 4.6” x 2.8” x 1.6” (117 mm x 71 mm x 41 m)

- Weight: 7.5 oz with batteries

-Battery Power: One 3-volt DL123 battery



Visible Aim Laser - ATPIAL

- Output: 4.0 mW (Class IIIa)

- Beam Divergence: 0.5 mrad

- Wavelength: 605-665 nm

- Range: > 25 m



IR Aiming Laser - ATPIAL

- Output Power Low: 0.6 mW (Class I)

- Output Power High: 25 mW (Class IIIb)

- Beam Divergence: 0.5 mrad

- Wavelength: 820-850 nm

- Range: > 600 m (Low), 2000 m (High)



IR Illuminator - ATPIAL

- Output Power Low: 3.5 mW (Class IIIa)

- Output Power High: 30 mW (Class IIIb)

- Beam Divergence: 1-105 mrad (minimum)

- Wavelength: 820-850 nm

- Range: > 2,000 m



Danger: Laser Radiation

Avoid direct exposure to beam



IR Laser

- Power: 50 mW

- Wavelength: 830 nm

- Class IIIb



VIS Laser

- Power: < 5 mW

- Wavelength: 650 nm

- Class IIIa
Manufacturer: Brownells
Model: ATP000A18VIS
