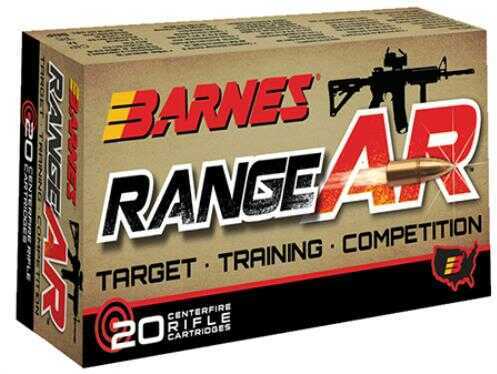

Barnes Bullets Range AR 5.56x45mm 52 Grain Open Tip Flat Base Ammunition, 20 Per Box For those seeking ammunition that performs consistently, Barnes RangeAR Ammunition delivers higher velocity, flatter trajectory and ultimate accuracy at an affordable price. First quality factory-fresh brass is paired with a lead-free, copper-jacketed, zinc core OTFB (Open Tip Flat Base) projectile. The robust zinc core provides excellent performance in AR’s with quick twist barrels. Specialized propellants optimized for AR’s ensure that RangeAR Ammunition offers superior performance in these high performance platforms of any barrel length. As an additional bonus, click on the QR code located on the back of each box to view drop tables for a variety of barrel lengths specific to each load.
Specifications:
- Cartridge: 5.56 X 45MM
- Ballistic Coefficient: .215
- Rounds: 20 per box
- Bullet Weight: 52 grain
- Bullet Type: Open Tip Flat Base
- Muzzle velocity: 3060 fps
- 100 Yard velocity: 2624 fps
- 200 Yard velocity: 2227 fps
- Muzzle energy: 1081 ft/lbs
- 100 Yard energy: 795 ft/lbs
- 200 Yard energy: 573 ft/lbs
- Uses: Target Shooting, Practice, and Plinking
Manufacturer: Barnes Bullets Mfg Number: 30844
The information below comes from our Gun Caliber Dictionary and is for
general reference only. It does not describe the specifications of this
particular item.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles.
—
Craig Boddington
