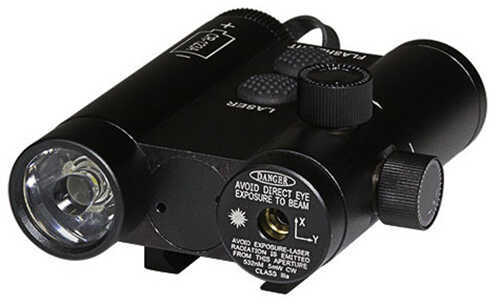

Firefield AR-Laser Light Designator, Black Md: FF25001

Firefield AR-Laser Light Designator, Black Md: FF25001
The low-profile Firefield AR Laser-Light Designator is engineered with a 5mW green laser and a 180 lumen flashlight, allowing shooters to seek out their enemy with precision accuracy. The laser is offset, clearing the front sight post and ensuring a perfectly centered beam, and the flashlight delivers bright illumination for clearing a dark room or spotting targets. This device can be mounted in front of a riflescope on a picatinny or weaver rail, or on the side of a quad rail. Visibility ranges approximately 50 yards in the daytime to more than 600 yards at night. With 1 MOA-click value adjustments, the hand adjustable windage and elevation turrets help users zero in the laser dot for close-range shooting. Lightweight and shockproof, the AR Laser-Light Designator provides up to 15 hours of use with a single CR123 battery. Shooters can operate the unit by pushing the on/off button on top or attaching the included pressure pad.



Features:

- Low Profile Design

- Push button or pressure pad operation

- 5mW green laser and 180 lumen flashlight

- Hand adjustable windage/ elevation adjustments

- Lightweight and shock proof

- 600 yards laser visibility at night

- Up to 50 yards laser visibility in daylight



Specifications:

- Laser wavelength (nm): 532

- Laser type: Green, Class IIIA

- Laser power output (mW): <5

- Dot size(in @ 50yd): 2

- Visibility-day (yd/m): 50/46

- Visibility-night (yd/m): 600/550

- LED Output (Lumens): 180

- Battery type: CR123A

- Battery life (hours): LASER - 10 HRS; Light - 15 Hrs; Laser and Light - 4 Hrs

- Battery type: 3V CR123A

- Battery life (hours): 1

- Battery voltage (V): 3

- Maximum recoil (G's): 600

- Adjustment value: 1 MOA

- On/off operation: Push Button or Pressure Pad

- Finish/color: Matte Black

- Body material: Aluminum

- Waterproof: IPX4 (Weather)

- Shockproof: Yes

- Mount type: Weaver

- Operating temperature (°F): 32 TO 120

- Length (mm): 86

- Width (mm): 69

- Height(mm): 41

- Weight (oz): 6.8



Manufacturer: Firefield

Manufacturer Number: Ff25001

Upc: 812495020216
