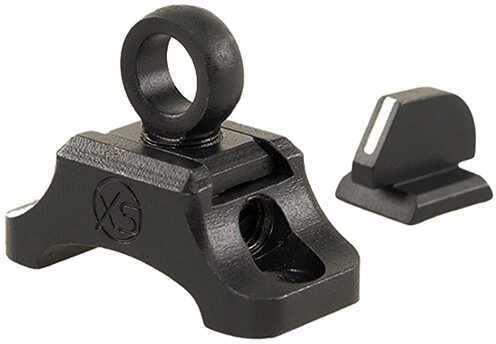

XS Sight Systems XS GRA Set, Ramp Front Winchester 94 AE Md: Wi-0009-5

XS Sight Systems XS GRA Set, Ramp Front Winchester 94 AE Md: Wi-0009-5

XS Ghost Ring Hunting Sights Allow For quicker Acquisition Of Targets And Help To Improve Accuracy. The Aperture Is Adjustable For Windage And Elevation. This Type Of Sight Is Great If You Hunt In Brushy Or Heavily forested areas. Windage Is Adjusted By opposing Windage screws. Provides 14" Of Adjustment at 100 yards based On a 24" Sight Radius. Elevation Is Adjusted By loosening One Windage Screw And truning The Rear Aperture Clockwise Or Counterclockwise To Move The Aperture Up Or Down. Stem Of Aperture Is Threaded. Each 180 Degree Turn Of The Aperture moves The Bullet Point Of Impact 1" at 100 yards. Sight provides 16" Of Adjustment at 100 yards based On a 24" Sight Radius.



Specifications :

- White On Black Front Post That Is Perfect For All Light conditions

- The White Stripe draws Focus To The Front Sight For Fast Target Reference

- Large Ghost Ring affords Great Field Of View For Fast Target Acquisition

- Ghost Ring Rear Sight Is Fully Adjustable For Windage And Elevation

- Sets Include .230” And .191” I.D. apertures

- Easy Installation In Most Cases matching existing Screw holes Requires a Minimum, If Any, Gunsmithing.

- Material:Blued Steel

- Size/Finish:Winchester 94,Ramo Front

- Made In The USA
