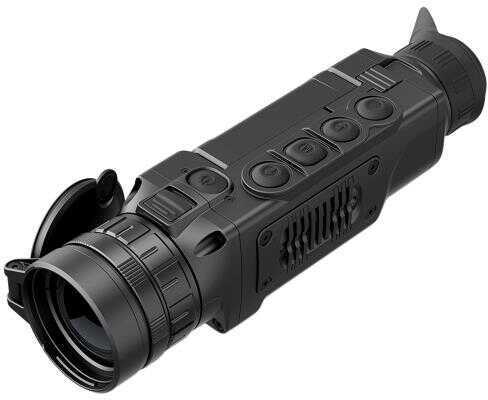

Pulsar Helion line of thermal monoculars is the next step in Pulsar innovations within thermal imaging space. These thermal monoculars offer such cutting edge features as photo and video recording, wireless connectivity to mobile devices, replaceable battery packs, and IPX7 weather proofing. With 8 color modes, great ergonomics, amazing thermal image quality and high resolution AMOLED display, this thermal monocular leaves nothing else to wish for.
Features:
- The best image definition
- Variable magnification
- High image frequency
- Detection distance up to 700 m
- Built-in video recording
- Mobile-friendly (iOS, Android) with remote control and live internet streaming
- Quick-change B-Pack power units
- Stadiametric rangefinder
- Fully waterproof
- Wide range of operating temperatures
- Display-off mode
- User-friendly interface
- Updatable software
- Thermal Imaging
Specifications:
- Type of Microbolometer: Uncooled
- Frame Rate, Hz: 50
- Microbolometer resolution: 384x288 pixels
- Pixel Pitch: 17µm
- Display type: AMOLED
- Display Resolution: 640x480 pixels
- Built-In Video Recorder Availability: yes
- Built-In Memory: 8Gb
- Format of video clip: .avi
- Resolution of video clip: 640x480
- Format of photo files: .jpg
- Resolution of photo files: 640x480
- USB type: microUSB
- Operation modes: 3
- Integrated Wi-Fi module: yes
- Defective pixel repair option: yes
- Magnification: 2.5
- Digital zoom: 2x; 4x
- Objective Lens: F30/1.6
- Field of View, Degrees, horizontal * vertical: 12.4*9.3
- Horizontal Field of view: 21.8m at 100m
- Exit pupil: 5mm
- Diopter adjustment: ± 5 dptr
- Close-up distance: 3-5m
- Range of detection (object (high*width = 1,7*0,5m): 800m
- Power Supply: 3.0V - 4.2V
- Battery type: B-Pack (Li-ion)
- Battery Life: 8 hours
- External Power Supply: 5V - USB
- Operating Temperature, Degrees: - 25 … +50
- Level of Protection (acc. to IEC 60529): IPX7
- Waterproofness: yes
- Dimensions: 230mm x 55mm x 58mm
- Weight (without batteries): 0.45kg
- Frequency: 2.4 GHz
- Standart: 802.11 b/g/n
- Line-of-sight reception range: 15m
Included in Box:
- Helion Thermal Imaging Scope
- IPS5 Battery Pack
- Battery charger with mains charger
- USB cable

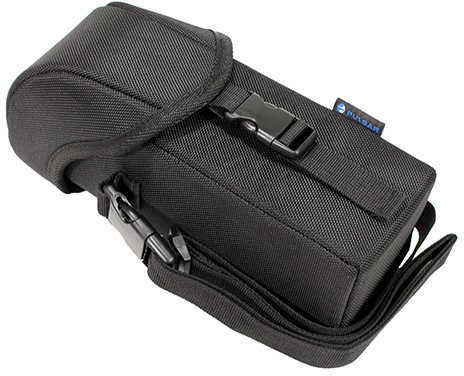

- Carrying case
- Hand strap
- User manual
- Lens cloth
