FLIR Thermal Monocular LS-XR 640x512, 35mm, IP67 Rated, NTSC 7.5 Hz, Waterproof, Black Md: 431-0011-21-00S

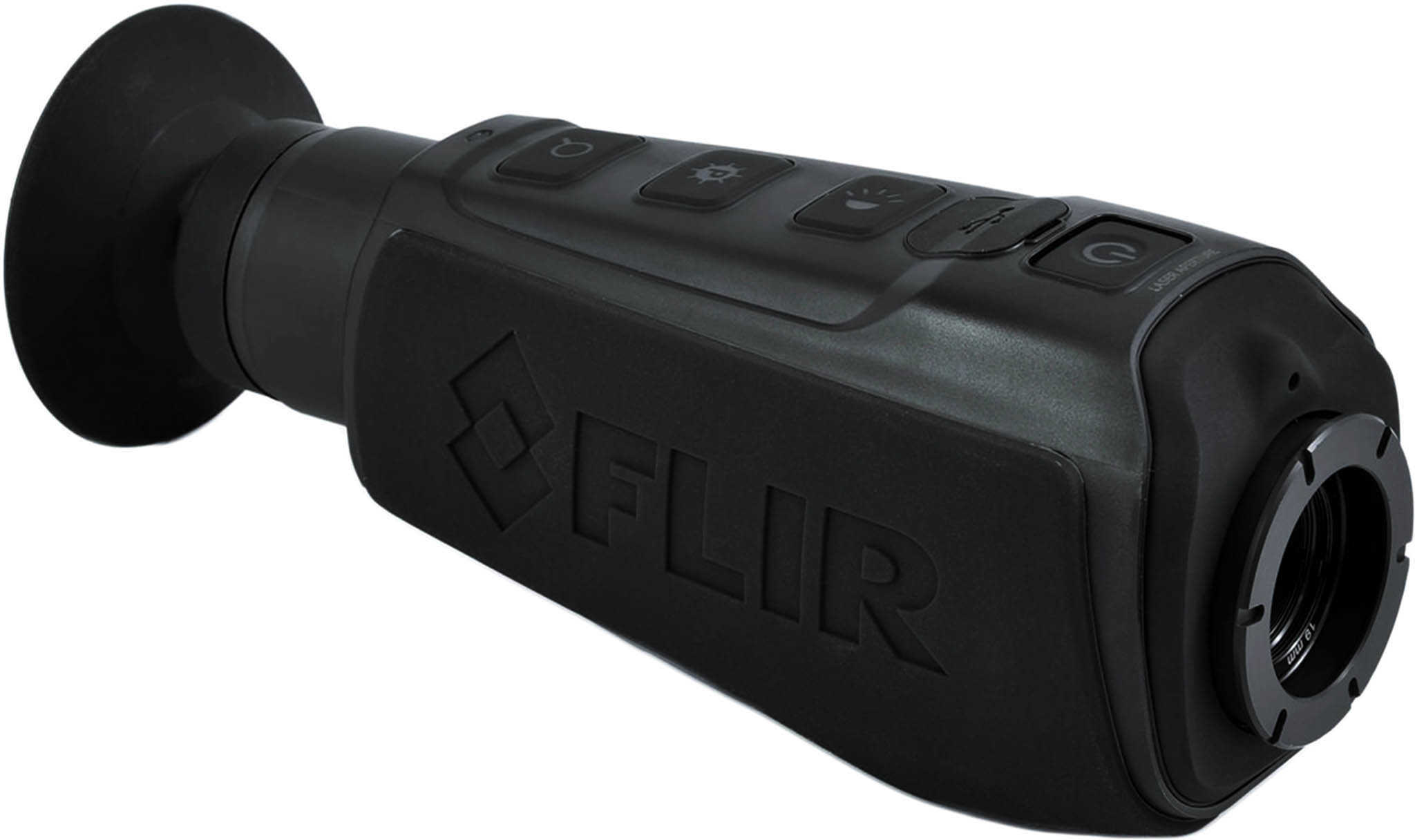

FLIR LS-XR 640 x 512 Thermal Monocular is a handheld thermal imaging device designed primarily for law enforcement professionals but can be useful to anyone. You can view, record, or relay images and videos of thermal signatures through fog, smoke, and foliage during the day or at night. At the core of this device is the 640 x 512 VOx uncooled microbolometer that operates at room temperature at a 7.5 Hz refresh rate. This thermal imager features a 35mm lens with a 18 x 14° field of view, 2-8x digital zoom, and a number of palettes and digital enhancements like the FLIR Proprietary Digital Detail Enhancement. You can view scenery on the built-in 640 x 480 LCD display or relay 640 x 512-pixel NTSC or PAL videos to external displays and recorders. To enhance user experience, the monocular offers a simple but effective control pad and an in-view menu.
This thermal imaging device is packaged into a lightweight, durable, and ergonomic polymer body. Its rubberized covering provides a non-slip grip, and its rubber eye cup offers comfort and protects eyepiece optics from rain and snow.
Features:
- Imaging Performance : 640 x 512 VOx microbolometer
35mm lens with 18 x 14° field of view
7.5 Hz refresh rate
2x, 4x, and 8x digital zoom
- Video, Display, Memory : FLIR Proprietary Digital Detail Enhancement
640 x 480 LCD display with brightness adjustment
Black Hot, White Hot, InstAlert polarity modes
Built-in red laser pointer allows precise aiming
Default NTSC video output via custom USB to RCA cable
Output switchable to PAL via user GUI
Manual focus lens
- Construction Details : Durable and lightweight polymer housing
Rubber covering for a non-slip grip
Waterproof and submersible
Impact-resistant
Rubber eyecup
Includes:
- FLIR LS-XR 640 x 512 Thermal Monocular (7.5 Hz)
- USB Power Adapter/Charger
- Custom Video Out Cable
- Wrist strap
- USB Cable
- Molle Bag
Specifications:
- Array Configuration: 640 x 512 VOx microbolometer
- Sensitivity: < 50 mK @ f/1.0
- Refresh Rate: 7.5 Hz
- Spectral Response: 7.5 - 13.5 µm
- Start-Up Time: < 1.5 seconds
- Magnification: 2x, 4x, 8x digital zoom
- Field of View: 18° x 14°
- Lens System: 35 mm
- Video Output: NTSC/PAL
- Battery / Runtime: 1 x internal Li-ion cell battery / 5 h
- Weatherproofing: IP67-rated, waterproof
- Operating Temperature: -4 to 122°F
- Storage Temperature: -40°F to 140°F
- Dimensions: 6.7" x 2.4" x 2.3"
- Weight: 12 oz.
Manufacturer: FLIR Systems
MFG Number: 431-0011-21-00S
Upc: 812462020379
