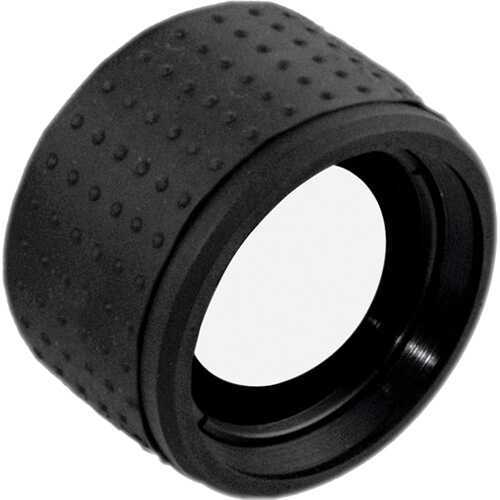

The FLIR QD35 35 mm Quick Disconnect Lens Is a Standard Focal Length Quick-Disconnect Lens Designed For The BHS-Series Thermal Binoculars. When Attached To The BHS-xR, The Field Of View Is 18 degrees X 13 degrees And 13 degrees X 10 degrees On The BHS-X. Raised And grooved Rubber sleeves Provide Excellent Grip For Fast, Accurate focusing. The Included Low-Profile Lens Caps Protect The Lens From Moisture And Damage.
Features :
- Thermal Imaging Accessories
- 35mm Lens
Specifications :
- FOV (320 X 240): BTS-X Pro: 13Deg. X 10Deg.
BTS-XR Pro: 18Deg. X 13Deg.
- E-Zoom FOV (Resolution): BTS-X Pro: 6.5Deg. X 5Deg. (160 X 120)
2X BTS-XR Pro: 9Deg. X 6.5Deg. (320 X 240)
- E-Zoom FOV (Resolution): BTS-X Pro: No
4X BTS-XR Pro: 4.25Deg. X 3.25Deg. (160 X 120)
- Detect Man (1.8 M X 0.5 M): BTS-X Pro: 780 M
BTS-XR Pro: 1,140 M
- Recognize Man: BTS-X Pro: 190 M
BTS-XR Pro: 280 M
- Size (H X D): 2.2" X 3.1"
