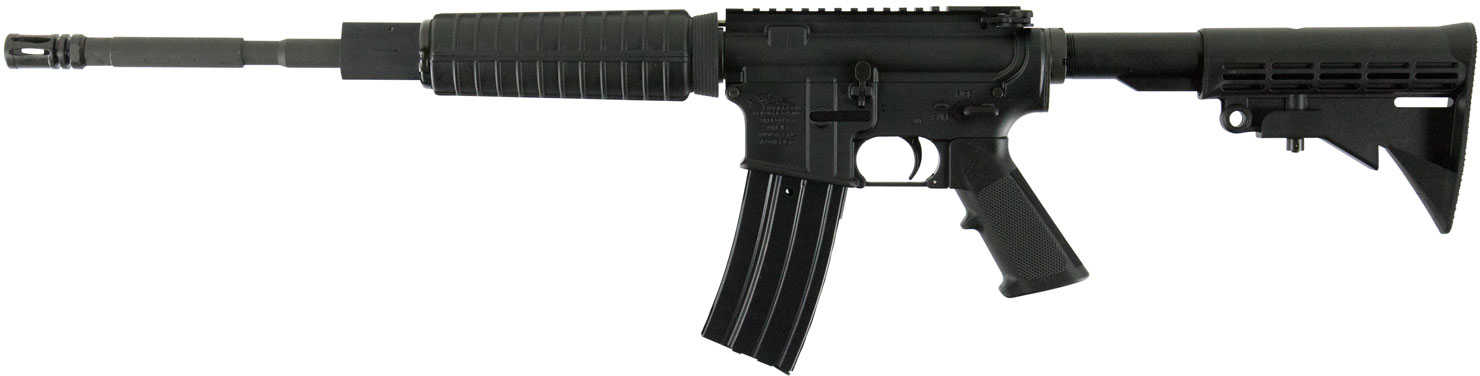

Anderson AM 15 BR AR-15 Rifle 5.56 NATO 16" Barrel 6 Position Stock
The AM15-BR, 5.56 16" – With manufacturing all our parts here at Anderson Manufacturing we are able to offer you Affordable, American Made, Quality for Less! Just add an optic of your choice and you are ready to take on range day!
Specifications & Features
ACTION: Semi-Automatic
Caliber: 5.56 Nato
MAGAZINE CAPACITY: (1) 30rd
FINISH: Black Anodize
WEIGHT: 6.2lbs
OVERALL LENGTH: 32 ½”, 36 1/8” Extended
BARREL LENGTH: 16? M4 Contour
Rifling: 1:8
RECEIVERS: 7075-T6 Forged
BCG: AM-15 Bolt Carrier Group – .223
CHARGING HANDLE: Standard Charging Handle
GAS BLOCK: Low Profile
Flash Hider: A2
FOREARM: A2 Plastic Hand Guard
FRONT SIGHT: None
Pistol Grip: A2
BUTT STOCK: M4 Anderson
ADDITIONAL SPECS/NOTES: Barrel is compatible with .223 Ammunition.
Description
Upper Specifications
UPPER RECEIVER: Standard, Anodized Black
BARREL: 5.56 NATO, 16?, 1:8, M4 Contour
Material & Finish: 4150 Chrome Moly Vanadium, Parkerized
MUZZLE DEVICE: A2 Flash Hider
GAS SYSTEM: Low Profile Aluminum Gas Block and Carbine Length Gas Tube
HANDGUARD: A2 Style, Carbine Length, Black
BOLT CARRIER GROUP: Standard, M16 Profile
Bolt: Mag Phosphate, 9310 Steel, MPI Tested
Carrier: Mag Phosphate, 8620 Steel, Staked Gas key
CHARGING HANDLE: Standard, Anodized Black
Lower Specifications
LOWER RECEIVER: Open Trigger, Semi-Auto Profile, Multi-Cal, Anodized Black
LOWER PARTS: Standard Lower Parts and Trigger Guard
GRIP: A2 Style Pistol Grip, Black
RECEIVER EXTENSION: 6 Position Carbine Length Buffer Tube, Buffer, & Buffer Spring
STOCK: 6 Position Carbine Buttstock Assembly, Black
MAGAZINE: Magazine, 30 Rnd, 5.56 NATO, Orange Follower, Aluminum, Black
TREATMENT: Non RF85
Caliber Dictionary
The Below Information Has Been Provided From Our Gun Caliber Dictionary And Is Meant For Informational Purposes Only. It Is Not Intended to Describe The Unique Specifications For This Ammunition.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles. — Craig Boddington
