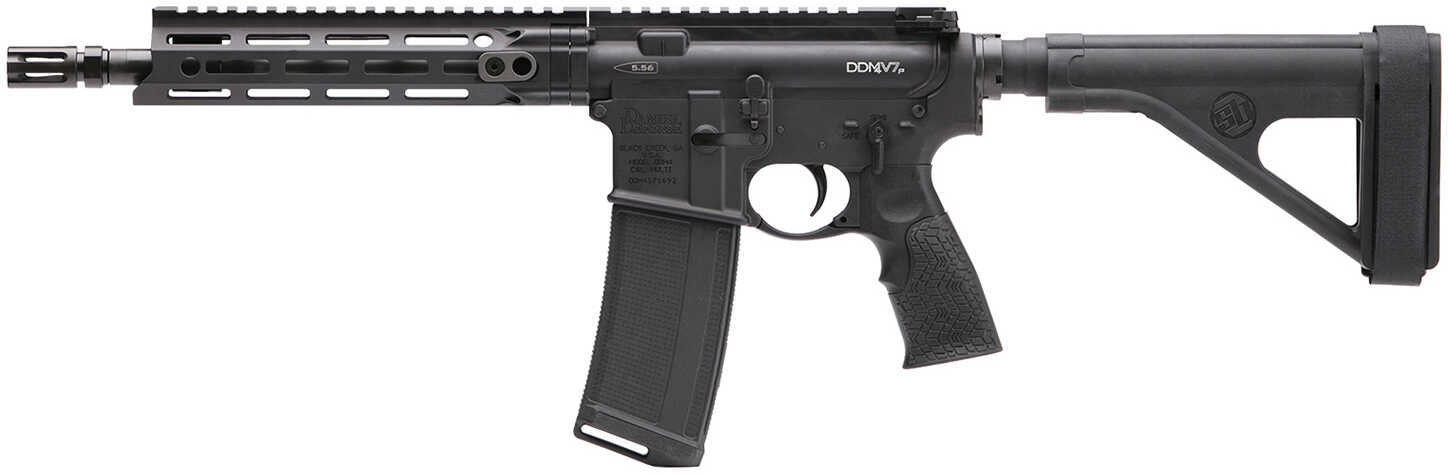

Daniel Defense DDM4 V7P Pistol 223 Remington 10.3" Pistol Black Finish
This highly maneuverable pistol pairs a 10.3” barrel and the MFR 9.0 rail for fast handling, accuracy, and reliability while also providing compatibility with a wide variety of muzzle devices and sound suppressors for even more customization. A variation of the DDM4V7 S, it features the SB Tactical SOB Pistol Stabilizing Brace and is classified as a pistol, not a short-barreled rifle, so it does not require ATF approval and a tax stamp. The Daniel Defense DDM4V7 P features M-LOK attachment technology and comes equipped with a rugged and comfortable Daniel Defense pistol grip with integral trigger guard and soft touch overmolding.
Materials & Construction
LOWER RECEIVER: Mil-Spec with Enhanced Flared Magazine Well and Rear Receiver QD Swivel Attachment Point. CNC Machined of 7075-T6 Aluminum, Type III Hard Coat Anodized
UPPER RECEIVER: Mil-Spec with Indexing Marks and M4 Feed Ramps. CNC Machined of 7075-T6 Aluminum, Type III Hard Coat Anodized
RECEIVER EXTENSION: AR Pistol Receiver Extension
BARREL: Chrome Moly Vanadium Steel, Cold Hammer Forged, 1:7 Twist, 10.3? Government Profile, Chrome Lined, Mil-Spec Heavy Phosphate Coated, and HP/MPI Tested
GAS SYSTEM: Low Profile Gas Block CNC Machined of 4140 hardened steel with Mil-Spec Heavy Phosphate Coating, Carbine Length, Direct Impingement
MUZZLE DEVICE: Daniel Defense Flash Suppressor, 17-4 PH Stainless Steel, Salt Bath Nitride Finished
BOLT CARRIER GROUP: M16 Profile, Mil-Spec MP Tested, Chrome Lined, Properly Staked Gas Key
BUFFER: H Buffer
HANDGUARD: MFR 9.0 M-LOK, CNC Machined of 6061-T6 Aluminum, Type III Hard Coat Anodized, Black
BRACE: SB Tactical SOB Pistol Stabilizing Brace
PISTOL GRIP: Daniel Defense Pistol Grip, Glass Filled Polymer with Soft Touch Overmolding
Made in the USA!
Caliber 5.56mm NATO
Muzzle Thread 1/2×28 TPI (Threads Per Inch)
Gas System Carbine
Barrel Length 10.3"
Profile Government
Product Weight 5.44
Length 28 5/8"
Magazine DD Magazine
Case Daniel Defense Full-Latch Impact Plastic Case
Manufacturer Daniel Defense
The information below comes from our Gun Caliber Dictionary and is for
general reference only. It does not describe the specifications of this
particular item.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles.
—
Craig Boddington
