Thermal Imaging Weapon Sight

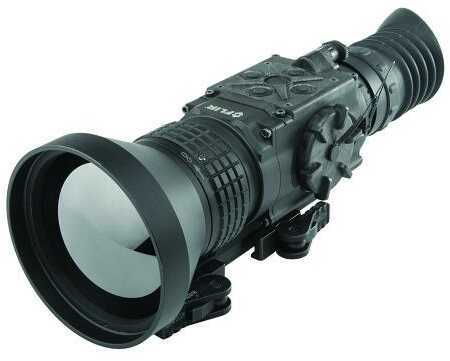

FLIR ThermoSight® PRO PTS736
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS736 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 75mm lens, the PTS736 produces brilliant, clean thermal imaging with a 3° × 2.5° field of view for long-range targets. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
Advanced Image Processing
The FLIR ThermoSight ® PTS736 Pro Series thermal core creates stunning imagery for better detection and classification day or night.
Compact, Powerful
The FLIR ThermoSight® Pro Series has a rugged aluminum alloy that can withstand drops in the field.
Superior Value
Capture the moment with recoil-activated video recording and image capture, using multiple palettes and reticle patterns.
Specifications
System Overview
Detector Type 320 x 256 VOx Microbolometer
Eye Relief 45 mm
Focus Range 10m to infinity
Internal Memory Up to 2.5 hours of recorded video or up to 1,000 pictures
Package Includes Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case
Size (L x W x H) 11.1" × 3.5" × 3.7" (283 x 89 x 93 mm)
Weight 0.97 kg (2.14 lbs)
Zoom 1×, 2×, 4×
Boresight Adjustment Type Digitally Controlled
Color (housing) Black
Height of the Scope Axis above Rail 1.89 in (48 mm)
Lens System 75 mm; F/1.0
Optical Magnification 6x
Weapon Mount Type Picatinny, MIL-STD 1913, and Weaver Rails
Connections & Communications
Video Output Digital Video
Environmental & Approvals
Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Imaging & Optical
Digital Zoom 2x, 4x
Display Quad-VGA (1280 x 960) FLCOS
Field of View 3° x 2.5°
Image Processing FLIR Proprietary Digital Detail Enhancement™
Diopter Adjustment Range -5 to +5 dpt
Reticle Type Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle"
Environmental & Approvals
Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Imaging & Optical
Digital Zoom 2x, 4x
Display Quad-VGA (1280 x 960) FLCOS
Field of View 3° x 2.5°
Image Processing FLIR Proprietary Digital Detail Enhancement™
Diopter Adjustment Range -5 to +5 dpt
Reticle Type Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle"
Sensor Specifications
Core FLIR 12µm BOSON
Manufacturer Number TAB176WN7LR0061
