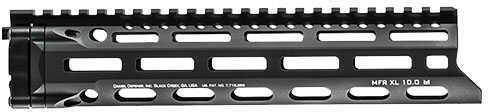

Daniel Defense MFR XL M-Lok Rail 10", Black

Daniel Defense MFR XL M-Lok Rail 10", Black

The MFR XL Rail Systems from Daniel Defense utilize the M-LOK attachment system for incredible weight savings as well as superior cooling, ergonomics, and modularity while maintaining the strength and durability expected from Daniel Defense. M-LOK attachment points are located along the sides and bottom on the rail and feature an uninterrupted 1913 Picatinny rail on top. Its sleek bolt-up system increases strength and allows for easy installation. The increased internal diameter gives the operator the ability to attach a suppressor and have the proper clearance needed for installation. Anti-rotation tabs come standard for ease of installation and alignment. The MFR can be used with a pinned low-profile gas block on pistol, carbine, mid-length or rifle length gas systems.



Features :

- Light Weight Free Floating Barrel Design

- Steel Barrel Nut

- Uninterrupted Mil-Spec 1913 Picatinny Upper Rail

- M-LOK attachments on the sides and bottom

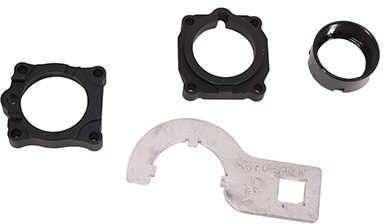

- Patented Bolt-Up Mounting System

- 1.61" internal diameter designed for use with suppressor



Specifications :

- Rail Length: 10.380"

- Width: 1.82"

- Height: 2.163"

- Inside Diameter: 1.61"

- Barrel Nut: Steel (For Patented Bolt-Up System)

- Gas System Length: Carbine

- Free Float: Yes

- Continuous Upper Rail: Yes

- Integrated Sling Swivel Attachment Point: Yes

- Material: Aircraft Grade 6061-T6 Aluminum

- Finish: Military Specification Type III Hard Coat Anodized

- Weight of Rail: 7.05 oz.

- Weight Installed: 9.95 oz. (with Mounting Hardware)

Manufacturer: Daniel Defense

Model: 01-107-08198
