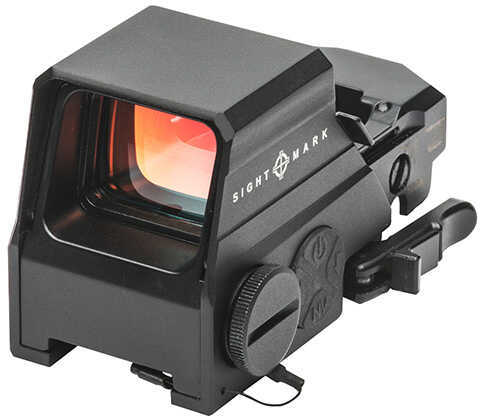

Sightmark Ultra Shot M-Spec Reflex Sight LQD
Specially designed to handle your hardcore shooting needs, the Sightmark Ultra Shot M-Spec LQD Reflex Sight promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patent-pending integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shock proof, dustproof, IP68 waterproof, recoil rated up to .338 Win. Mag. and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach picatinny mount. The Ultra Shot M-Spec LQD Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
Features:
- Patent-pending integrated sunshade
- Advanced AR coated, scratch resistant lens system
- Locking quick-detach picatinny mount
- 12-hr. auto shut-off
- Motion sensing on/off activation
- Low battery indicator
Includes:
- Manual
- CR123A battery
- Adjustment tools
- Neoprene cover
Specifications:
- Reticle, Type: 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
- Reticle, Color: Red
- Setting, Brightness: Off, 1-10, NV
- Magnification: 1
- Objective overall dimension: 33x24 mm
- Elevation Range of Adjustment: 120 MOA
- Eye Relief: Unlimited in/mm
- Windage Range of Adjustment: 120 MOA
- Adjustment Value: 1 MOA
- Parallax Setting: 10 / 9.1 yd/m
- Finish/Color: Matte black
- Body Material: Magnesium alloy
- Maximum Recoil: .50 BMG Max caliber
- IP Rating (waterproof): IP68 - waterproof to 40ft/12m
- Nitrogen Filled: No
- Fog Proof: No
- Shock-proofness: Yes, 8ft / 2.4m
- Lens Coating: AR red
- Battery Type: CR123A
- Mount Type: Picatinny
- Battery Life: 200-2,000
- Battery Voltage, V: 3V
- Operating temperature, F/C: -22 to 160 / -30 to 71 F/C
- Length: 4.01"
- Width: 2.24"
- Height: 2.32"
- Weight: 10.2 oz.
Manufacturer: Sightmark
Model: SM26034
