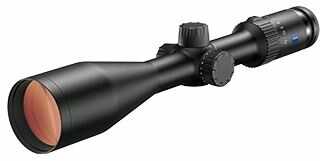

Zeiss Conquest V4 3-12×56 Rifle Scope Plex-Style w/ Dot #60 Reticle Illuminated
This riflescope is suitable for stand hunting and for long-range shots. The large objective lens diameter and (optional) illuminated reticle guarantee aiming accuracy, even in low light.
56mm objective lens diameter
Large elevation and windage adjustment range
Capped elevation and windage turrets (multi-turn)
Fixed parallax

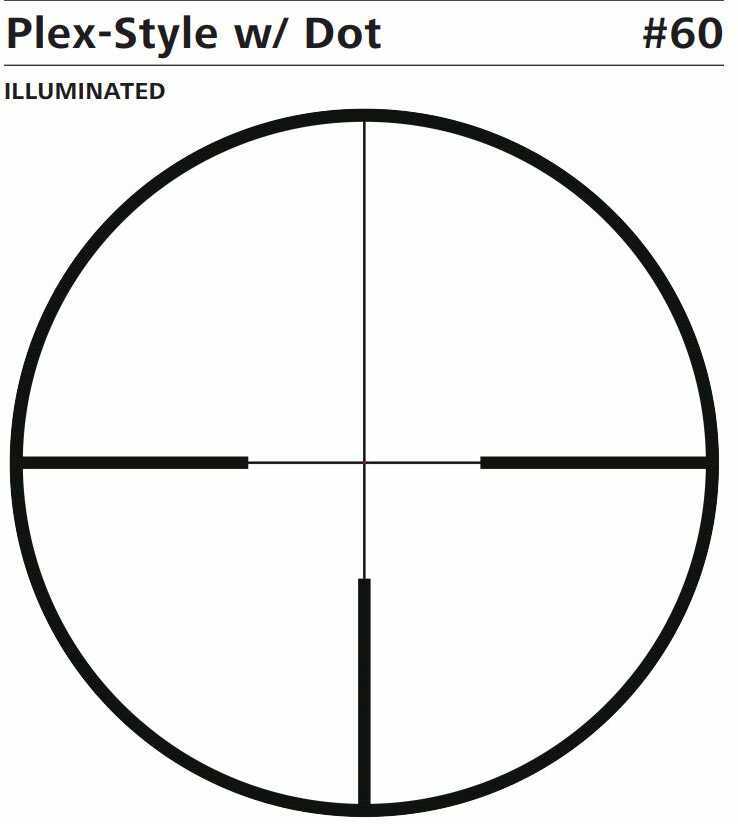

Reticles: #20 Z-Plex (plex-style) / #60 (illuminated center dot)
ABOUT THE NEW ZEISS CONQUEST V4 RIFLESCOPES
The Conquest V4 family is based on a 4x zoom ratio, incorporates a 30 mm main tube, and consists of the 1-4x24, 3-12x56, 4-16x44, and 6-24x50 models. Each model delivers 90% to the-eye light transmission, offers .25 MOA click values, capped windage adjustment, second focal plane reticle designs, and a large range of total elevation and windage travel adjustment. The 1-4x24 model is available with either capped or external elevation turrets, while the 3-12x56 version comes standard with capped elevation and windage turrets. The 4-16x44 and 6-24x50 models have external elevation turrets. Within the Conquest® V4 product line, all external elevation turrets also include ZEISS’ Ballistic Stop feature to ensure an absolute and positive return to zero under any conditions.
There are several reticle options available. These include traditional plex-style reticles, as well as ZEISS’ newest ZMOA and ZBR MOA-based smart reticles. The ZQAR reticle, available with the 1-4x24 model, represents an intelligent reticle design, based upon certain 223 Remington and 308 Winchester ammunition ballistics. Illuminated reticles are standard for the 1-4x24 model and optional for the 3-12x56 and 6-24x50 models. A magnification power throw lever is available as an optional accessory.
The Conquest® V4 models are backed by ZEISS’ Limited Lifetime Transferable Warranty and Five-Year No-Fault Policy. These riflescopes serve a wide range of hunting and shooting applications, are packed with unique features, perform beyond expectations in their price range, and provide exceptional value.
Model 3 - 12 × 56
Magnification 3 x - 12 x
Focal Plane Second
Effective Lens Diameter 27.7 mm - 56 mm
Exit Pupil Diameter 9.2 mm - 4.7 mm
Twilight Factor 9.1 – 25.9
Field of View at 100 yds 38 ft - 9.5 ft 28.5 ft - 7.1 ft
Angular Field of View, Real 7.2° - 1.8°
Diopter Range - 3 / + 2 dpt
Eye Relief 3.5 in
Parallax Setting 100 yds
Elevation Adjustment Range 70 MOA
Windage Adjustment Range 70 MOA
Click Value 0.25 MOA
Main Tube Diameter 30 mm
Eyepiece Tube Diameter 44 mm
Objective Tube Diameter 62 mm
Coating LotuTec® / ZEISS T*
Fogproof Nitrogen Purged
Waterproof 400 mbar (submerged 4 meters for 2 hours)
Operating Temperature -4 / +131°F
Length 14.5 in
Weight 21.5 oz.
