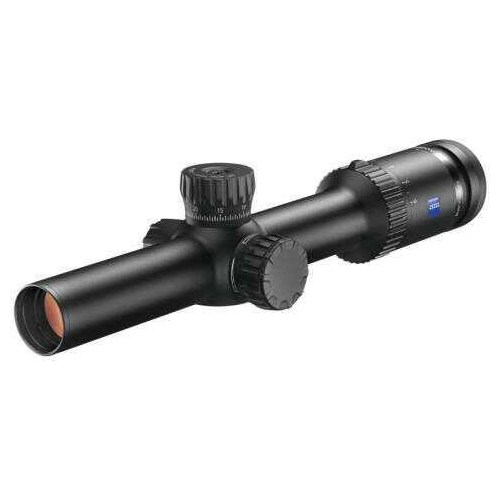

With true 6x magnification, this model is built for extremely fast target acquisition. The large, generous eyebox, combined with a wide field of view, makes it extremely versatile in close encounters, from dense cover and 3-Gun competitions to mid-range hunting conditions in open terrain.
Lockable external turret option with Ballistic Stop feature (absolute and positive return to zero)
Large, forgiving eyebox
ZEISS FL lenses, enhanced T* coatings and LotuTec® coating
Intelligent motion sensor activates/deactivates illuminated red dot
Reticles:ZMOA-4 #95 Illuminated
Model 1 - 6 × 24
Magnification 1.1x – 6.5x
Focal PlaneSecond
Effective Lens Diameter 10.5 mm - 24 mm
Exit Pupil Diameter 9.6 mm - 3.7 mm
Twilight Factor 3.1 - 12.5
Field of View at 100 yds 102.6 ft - 16.8 ft
Angular Field of 19.4° - 3.2°
Diopter Range -3 / +2 dpt
Eye Relief 3.5 in
Parallax Setting 100 yds
Elevation Adjustment Range 103 MOA
Windage Adjustment Range 103 MOA
Click Value 0.5 MOA
Main Tube Diameter 30 mm
Eyepiece Tube Diameter 45.5 mm
Objective Tube Diameter 30 mm
Coating LotuTec® / ZEISS T*
Fogproof Nitrogen Purged
Waterproof 400 mbar (submerged 4 meters for 2 hours)
Operating Temperature -12 / +122° F
Length 11.2 in
Weight 17.8 oz.
Reticles ZMOA-4 #95 Illuminated
