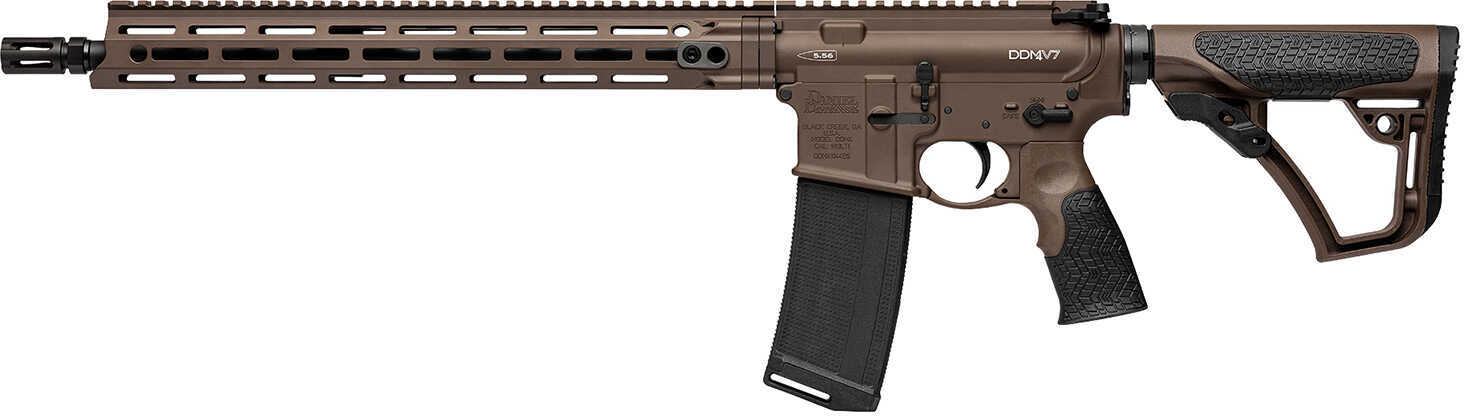

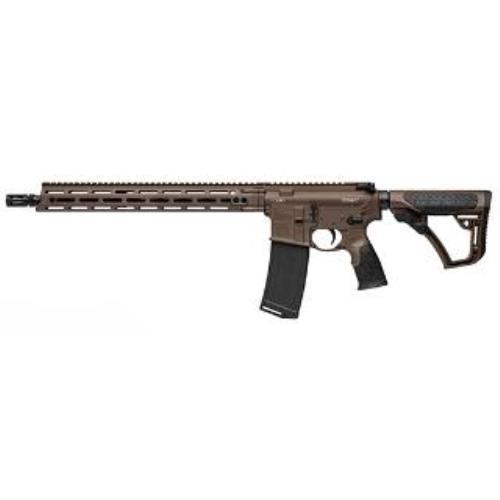

The Daniel Defense V7 is the first rifle in the DDM4 lineup to feature the M-LOK® attachment technology with the Daniel Defense MFR 15.0 rail. Built around a Cold Hammer Forged, 16” barrel, the V7 has a DD improved Flash Suppressor to reduce flash signature. The mid-length gas system provides smooth and reliable cycling under any condition and reduces both perceived recoil and wear on moving parts. A free-floating MFR 15.0 handguard offers incredible weight savings as well as superior cooling, ergonomics, and modularity while maintaining the strength and durability expected from Daniel Defense. With the M-LOK attachment points that run along 7 positions and an uninterrupted 1913 Picatinny rail on top, the V7 has plenty of room for the sights, optics, and accessories the user may require. The rifle is finished off with the rugged and comfortable Daniel Defense Buttstock and Pistol grip. This rifle is finished in Mil Spec + Cerakote.
Materials & Construction
• LOWER RECEIVER: Mil-Spec with Enhanced Flared Magazine Well and Rear Receiver QD Swivel Attachment Point. CNC Machined of 7075-T6 Aluminum
• UPPER RECEIVER: Mil-Spec with Indexing Marks and M4 Feed Ramps. CNC Machined of 7075-T6 Aluminum
• BARREL: Chrome Moly Vanadium Steel, Cold Hammer Forged, 1:7 Twist, 16" Government Profile, Mid-length Gas System, Chrome Lined, Mil-Spec Heavy Phosphate Coated, and HP/MPI Tested
• GAS SYSTEM: Pinned Low Profile Gas Block CNC Machined of 4140 hardened steel and Mil-Spec Heavy Phosphate Coating, Mid-length, Direct Impingement
• MUZZLE DEVICE: Daniel Defense Flash Suppressor, 17-4 PH Stainless Steel, Salt Bath Nitride Finished
• BOLT CARRIER GROUP: M16 Profile, Mil-Spec MP Tested, Chrome Lined, Properly Staked Gas Key
• BUFFER: H Buffer
• SIGHTS: Sold Separately
• HANDGUARD: Daniel Defense MFR 15.0, CNC Machined of 6061-T6 Aluminum, M-LOK Attachment
• RECEIVER EXTENSION: 6 Position Mil-Spec 7075-T6 Aluminum
• BUTTSTOCK: Daniel Defense Buttstock, Glass Filled Polymer with Soft Touch Overmolding
• PISTOL GRIP: Daniel Defense Pistol Grip, Glass Filled Polymer with Soft Touch Overmolding
• FINISH: Mil Spec + Cerakote
• Made in the USA!
Caliber: 5.56mm NATO
Muzzle Thread: 1/2×28 TPI (Threads Per Inch)
Gas System: Mid-length
Barrel Length: 16"
Profile: Government
Product Weight: 6.2 lbs
Length: 32 ¼” – 35 7/8”
Magazine: DD Magazine
Case: Daniel Defense Full-Latch Impact Plastic Case
The information below comes from our Gun Caliber Dictionary and is for
general reference only. It does not describe the specifications of this
particular item.
The 5.56X45mm NATO cartridge was designed by James Sullivan, a member of Eugene Stoner's engineering team that developed both the M16 rifle and its original cartridge. The 5.56X45mm NATO was adopted by the U.S. military in 1964 and by NATO in 1980. With bullet diameter of .224-inch, the original M193 military cartridge used a 55-grain bullet at 3250 fps; the current M855A1 cartridge, developed by FN, uses a 62.5-grain bullet at 3020 fps, offering greater range and better penetration. The civilian version of the 5.56X45mm is 223 Remington; the cartridges are dimensionally identical but military chamber dimensions and specifications for military brass are different. It is considered safe to use 223 Remington ammo in a 5.56X45MM NATO chamber, but not a good idea to use 5.56X45mm ammo in a rifle specifically chambered for the 223 Remington. Although the stopping power of .22-caliber bullets remains controversial the 5.56X45mm has served well in now multiple generations of M16 rifles.
—
Craig Boddington
