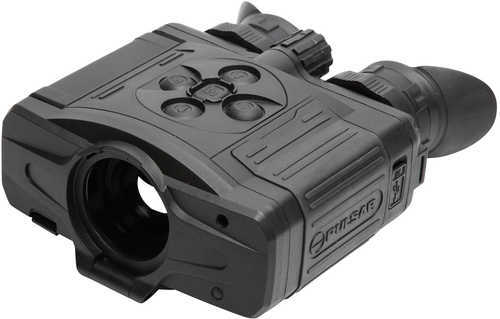

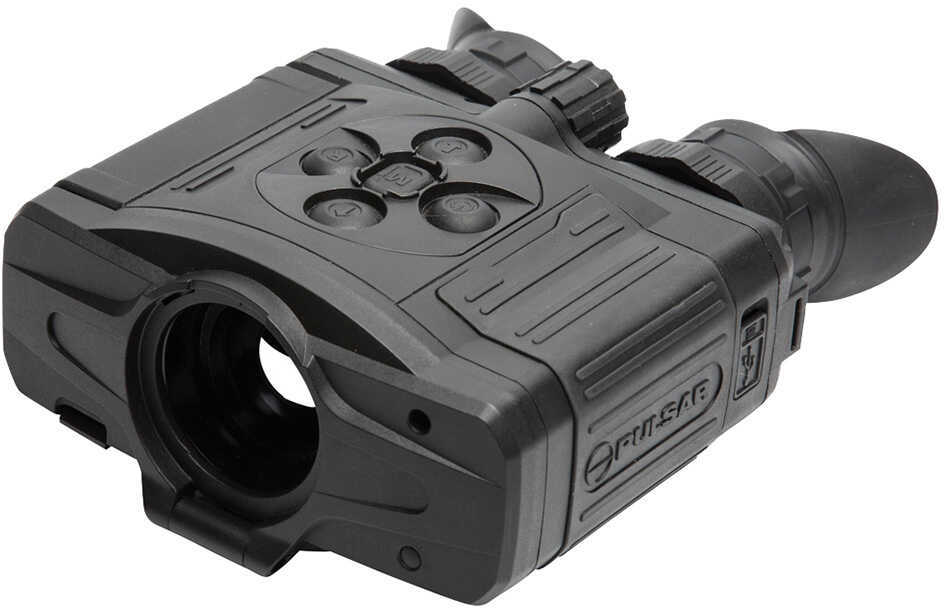

Pulsar Accolade XQ38 Thermal Imaging Binocular
ACCOLADE is a new model range of thermal imaging
binoculars from PULSAR with built-in video recorder,
stadiametric rangefinder, Wi-Fi module and long-life
quick-change battery. Based on a quality thermal
imaging sensors with resolution 640x480 and 384x288
with 17 µm pixel pitch ACCOLADE is able to produce
a highly detailed image at 50 frames per second in
complete darkness.
Features:
? High resolution thermal imaging sensor
? Long detection distance 1800m (2000 yd)
? Smooth and incremental digital zoom
? Comfortable for long observation
? Variable interpupillary distance
? High refresh rate 50 Hz
? Built-in video recorder
? Built-in Wi-Fi module
? Wi-Fi video transmission
? Live internet video sharing
? Frost resistant AMOLED display
? Magnetic compass
? Stadiametric rangefinder
? Quick-change long-life rechargeable battery packs
? Fully waterproof IPX7
Specifications:
- Type of microbolometer: Uncooled
- Frame rate, Hz: 50
- Microbolometer resolution, pixels: 384x288
- Pixel pitch, µm: 17
- Display type: AMOLED
- Display resolution, pix.: 640x480
- Magnification, x: 3,1-12,4
- Digital zoom, x: 2/3/4
- Lens focus, mm: 38
- Relative aperture, D/f': 1:1,2
- Field of View,° horizontal/vertical: 9,8/7,4
- Minimum focusing distance, m: 3
- Eye relief, mm: 16
- Exit pupil, mm: 5
- Diopter adjustment, dptr.: +/-5
- Interpupillary distance, mm: 56-71
- Detection range, m (object H/W = 1,7/0,5m): 1350
- Built-in video recorder: yes
- Built-in memory size, Gb: 8
- Built-in Wi-Fi module: yes
- Stream Vision application support: yes
- Micro USB socket: Power/data
- Stadiametric rangefidner: yes
- Color palettes: yes
- Power supply, V: 3,0-4,2
- Battery type: Pulsar B-Pack(Li-ion)
- Battery life, hour: 7
- External power supply: 5V Micro USB
- Tripod mount, inch: 1/4
- Operating Temp,°? :- 25 … +50
- Waterproof: IPX7
- Calibration (nonuniformity correction): manual, auto, semi-auto
- Length, mm: 164
- Width, mm: 130
- Height, mm: 64
- Weight (without batteries), kg: 0,6
