ZEISS answers the call for a thin-line and more intuitive reticle design. The new ZMOA-T30 afford the shooter a faster aiming solution with several user-friendly updates. These new second focal plane reticles meet the ever-demanding needs for long-range shooting as well as long-range hunting.

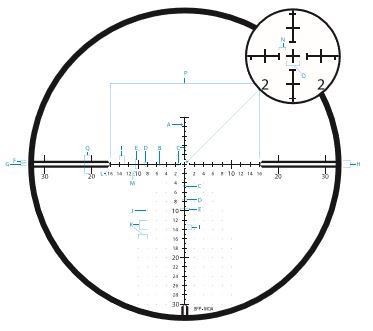

The thin lines are distinctive and cover the least amount of target possible, all while remaining highly effective for field shooting use and open terrain hunting applications. Each hash mark represents one MOA spacing, and MOA references are easily identified with even MOA numbers illustrated adjacent to the main horizontal and vertical lines of the reticle. The floating center point of aim allows for ultra-precise shot placement. The floating dots located left and right of the main vertical centerline allow the shooter to validate windage calls and bullet impact without guesswork. This strongly supports fast follow-up shots for corrected windage holds. The MOA reference marks and indicators subtend accurately at the riflescope’s highest magnification setting.
The Conquest® V4 models are backed by ZEISS’ Limited Lifetime Transferable Warranty and Five-Year No-Fault Policy. These riflescopes serve a wide range of hunting and shooting applications, are packed with unique features, perform beyond expectations in their price range, and provide exceptional value.

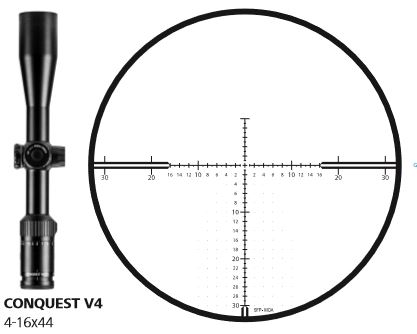

The designation of T30 represents the MOA hash marks available below the horizontal centerline of the main reticle. The Conquest V4 4-16x44 model hosts the ZMOA-T30 reticle,
Model 4 – 16 x 44
Magnification 4 x – 16 x
Focal Plane Second
Effective Lens Diameter 33.2 mm – 44 mm
Exit Pupil Diameter 8.5 mm – 2.8 mm
Twilight Factor 11.5 – 26.5
Field of View at 100 yds 28.5 ft – 7.1 ft
Angular Field of View, Real 5.4° – 1.4°
Diopter Range - 3 / + 2 dpt
Eye Relief 3.5 in
Parallax Setting 50 yds – 8
Elevation Adjustment Range 80 MOA
Windage Adjustment Range 60 MOA
Click Value 0.25 MOA
Main Tube Diameter 30 mm
Eyepiece Tube Diameter 44 mm
Objective Tube Diameter 0 mm
Coating LotuTec® / ZEISS T*
Fogproof Nitrogen Purged
Waterproof 400 mbar (submerged 4 meters for 2 hours)
Operating Temperature -4 / +131°F
Length 14 in
Weight 22.6 oz.…
