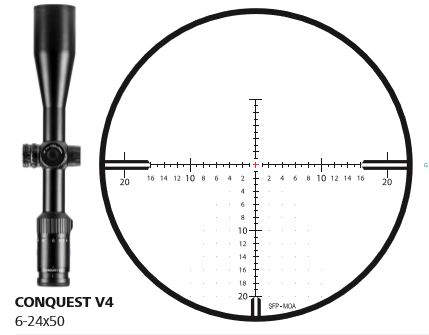

ZEISS answers the call for a thin-line and more intuitive reticle design. The new ZMOAi-T20 afford the shooter a faster aiming solution with several user-friendly updates. These new second focal plane reticles meet the ever-demanding needs for long-range shooting as well as long-range hunting.
The thin lines are distinctive and cover the least amount of target possible, all while remaining highly effective for field shooting use and open terrain hunting applications. Each hash mark represents one MOA spacing, and MOA references are easily identified with even MOA numbers illustrated adjacent to the main horizontal and vertical lines of the reticle. The floating center point of aim allows for ultra-precise shot placement. The floating dots located left and right of the main vertical centerline allow the shooter to validate windage calls and bullet impact without guesswork. This strongly supports fast follow-up shots for corrected windage holds. The MOA reference marks and indicators subtend accurately at the riflescope’s highest magnification setting.
The designation of T20 MOA hash marks available below the horizontal centerline of the main reticle. The Conquest V4 6-24x50 model incorporates the ZMOAi-T20 illuminated reticle. With the illuminated ZMOAi-T20, only the center point of aim illuminates for ideal low-light reticle illumination management

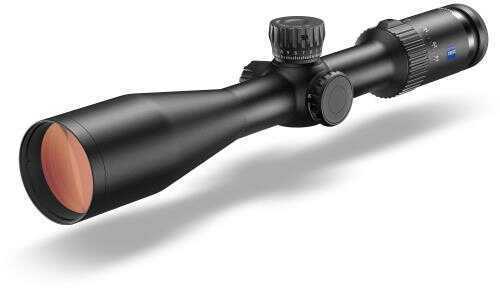

The Conquest® V4 models are backed by ZEISS’ Limited Lifetime Transferable Warranty and Five-Year No-Fault Policy. These riflescopes serve a wide range of hunting and shooting applications, are packed with unique features, perform beyond expectations in their price range, and provide exceptional value.
Brand: Zeiss
Model: Conquest V4
Magnification: 6-24x
Effective Objective Diameter (mm): 44.9 - 50
Exit Pupil Diameter (mm): 7.5 - 2.1
Twilight Factor: 16.4 - 34.6
Field of View @ 100 yds (ft): 19 - 4.8
Field of View @ 100 m (m): 6.3 - 1.6
Angular Field of View (°): 3.6 - .9
Diopter Range (dpt): -3 / +2
Eye Relief (in): 3.5
Eye Relief (mm): 90
Parallax Setting (yds): 50 - 8
Parallax Setting (m): 45.7 - 8
Adjustment Range (MOA): 80x60
Adjustment Range (cm): 230x175
Adjustment Per Click (MOA) : 1/4
Adjustment Per Click (cm): . 7
Center Tube Diameter (mm): 30
Eyepiece Tube Diameter (mm): 44
Lens Tube Diameter (mm): 56
Coating: LotuTec®
Nitrogen Filling: Yes
Waterproof (mbar): 400
Operating Temperature (°F): -4 / +131
Operating Temperature (°C): -20 / +55
Length (in): 14.5
Length (mm): 368
Weight (oz..…): 24.4
Weight (g): 690
Reticle: ZMOAi-T20 #65 Illuminated
