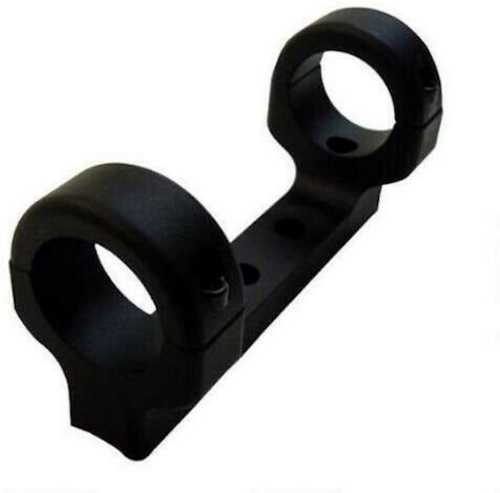

DNZ 11042 Game Reaper Traditions 1.13" Height 1" Diameter Medium Black
Base screws Are 8-40 X 1/4 Long. Ring screws Are 6-40 X 5/8" Long. Base screws Use a 9/64 Allen Wrench. Ring screws Use a 7/64" Allen Wrench. Outside To Outside Of Rings Is 3.92". Standard Rings Are .63" Wide And Have 2 screws Per Ring. (4) Hole To Hole Spacing dimensions Are .86, 1.27, .86. Height Of Mounts From Top Of Barrel To Centerline Of Scope Tube Is Medium 1.13". This Product Is Precision machined From a Solid Block Of Top-Grade Billet Aluminum, absorbs Shock, And withstands Temperature extremes Better Than Steel Mounts at a Fraction Of The Weight.
Model: Game Reaper
Finish: Black
Material: Aluminum
Ring Height: Medium
Mount Height: 1.13"
Manufacturer: DNZ
Mfg Number: 11042
Model: Game Reaper
Specification | Value | |
---|---|---|
MFG NO | 11042 | |
SKU | 11437784 | |
UPC | 879956001474 |
DNZ Products (Dednutz) | ||
Phone: | 919-777-9608 | |
Email: | ||
Website: | http://www.dnzproducts.com | |
Address: |
2710 Wilkins Drive Sanford, NC 27330 |
Quantity Available | Price |
---|---|
9 | $48.96 |
