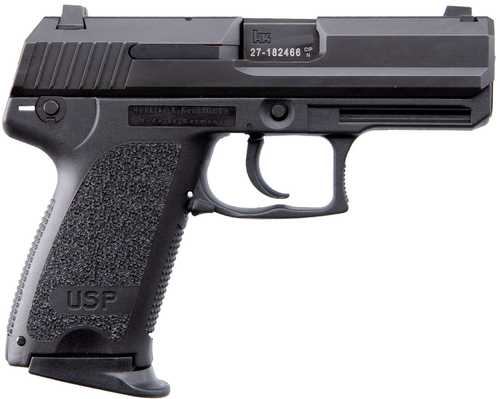

The HK USP Compact is a small frame pistol capable of firing the most powerful cartridges in 9 mm, .40 S&W, .45 ACP. Based on the full-size USP models, these handy pistols combine compact size with optimum effective shooting performance.
USP Compacts are smaller and lighter than large frame USPs. The reduction in trigger reach and grip circumference increases concealability and enhances shooting ergonomics. Unlike some subcompact semiautomatic pistols that use a difficult to shoot “two-finger grip” frame, the USP Compact uses a narrow, full-hand grip frame with a choice of interchangeable extended or flush-fitting magazine floorplates. This makes the pistol easy to shoot without sacrificing concealability.
Like their large frame predecessors, USP Compacts are designed with the demanding needs of the law enforcement and military shooters in mind. Using a modified linkless Browning-type action, the USP Compact is built to take the punishment of high-energy +P loads.
To reduce the length of the slide and barrel on the USP Compact, the mechanical recoil reduction system found on large frame USPs has been replaced by a specially designed flat compression spring contained in the captive recoil spring assembly by a polymer absorber bushing. Service life is still engineered to exceed 20,000 rounds.
Easy to shoot, simple to maintain; the USP Compact is a reliable, safe, accurate, and highly concealable pistol.
Features & System Characteristics : -Corrosion proof fiber-reinforced polymer frame
-Grooved target triggers
-Polygonal bore profile for increased velocity, easier cleaning, and longer barrel life
-Can be converted to any of nine trigger firing modes
-Specially designed captive recoil spring assembly with polymer absorber bushing
-Choice of corrosion resistant “Hostile Environment” blued finish or stainless steel slide
-One piece machined slide made from nitro-carburized steel
-No snag, bobbed hammer
-Flared recurve trigger guard
-Choice of flat and extended floorplate magazines
-Universal mounting grooves for installing accessories
The Below Information Has Been Provided From Our Gun Caliber Dictionary And Is Meant For Informational Purposes Only. It Is Not Intended to Describe The Unique Specifications For This Ammunition.
Designed by Winchester and introduced by Winchester and Smith & Wesson in 1990, the 40 S&W was designed as a "compromise" semiautomatic pistol cartridge that would offer more performance than the 9mm Luger (9x19)…but would produce less recoil and allow higher magazine capacity than the 45 ACP. Few compromises in the firearms world have ever worked as well. From a manufacturing standpoint many pistols designed for the 9mm could be re-engineered to handle the larger cartridge; in a short time it has become a standard issue in the law enforcement community. Using a .400-inch bullet of from 135 to 180 grains from a .850-inch cae, the .40 S&W produces up to 1205 fps, and although recoil is greater than the 9mm, it is easier to shoot than the 45 ACP, and its greater velocity and smaller bullet diameter aid penetration. — Craig Boddington
