Agm Asp Micro Tm160 Shrt Range Thermal Monocular

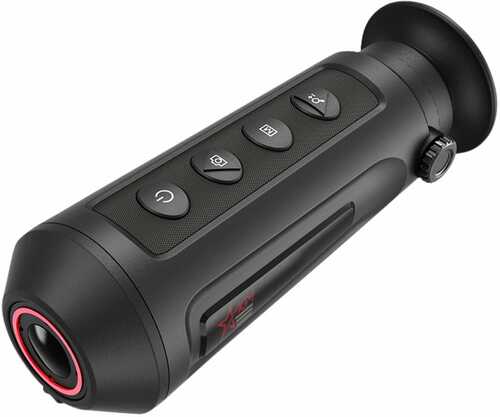

The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 or 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.
FUNCTIONS : Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
Mode Switch: Device supports pallet switch and distance measurement.
Storage: Built-in memory module supports video recording/snapshot capturing.
Digital Zoom: Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
160×120 or 384×288 resolution, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720×540 resolution LCOS display
Built-in rechargeable Lithium battery
More than 7 hours continuous running (with Wi-Fi hotspot function off)
Wi-Fi hotspot
Type-C interface
Limited 3-year warranty
Specifications
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband: 8?m to 14?m
FFC (Flat Field Correction): Auto, Manual, External Correction
Highest Temperature Spot Tracking: Yes
Standby Mode: Yes
Refresh rate: 50 Hz
Resolution: 160×120
Recognition: (Vehicles: 1.4×4.0m)-153yd (Humans: 1.8×0.5m)-50yd
Detection: (Vehicles: 1.4×4.0m)-611yd (Humans: 1.8×0.5m)-199yd
Identification Range: (Vehicles: 1.4×4.0m)-76yd (Humans: 1.8×0.5m)-25yd
Lens system: F1.1
NETD: less than 35 mk (@25°C), F#=1.1
Lens (focal length): 6.2 mm
Field of view (H × X): 15.61° × 11.74° (H × V)
Digital zoom: 1×, 2×, 4×
Display: 720×540, 0.2 inch, LCOS
Storage: Built-in memory module (8 GB)
Record Video: On-board video recording
Capture Snapshot: Yes
Battery Type: Built-in rechargeable Lithium battery
Wi-Fi: Yes
Battery Operating Time: More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display: Yes
Power supply: 5 VDC/2 A, 1.5 W, USB Type-C Interface
Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
Weight: 270 g (0.6 lb)
Overall Dimensions: 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level: IP67
