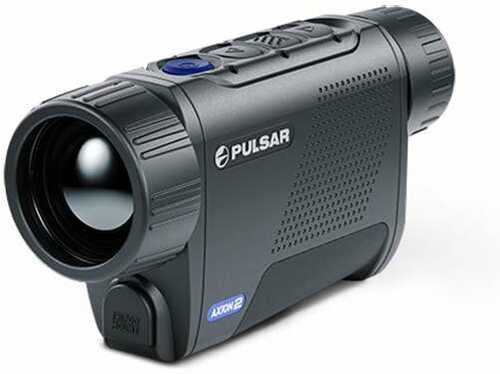

Pulsar Axion 2 Xg35 Thermal Monocular
Main
Sensor 640x480 pix. @ 12 µm (NETD <40 mK)
Objective lens F35 /1.0
Magnification, x 2.5-20
Field of view (HxV), degrees / m@100m 12.5x9.4 / 21.9
Detection range, m 1750
Sensor
Type uncooled
Resolution, pixels 640x480
Pixel pitch, µm 12
NETD, mK <40
Frame rate, Hz 50
Optics
Objective lens F35 /1.0
Magnification, x 2.5-20
Field of view (HxV), degrees / m @ 100 m 12.5x9.4 / 21.9
Eye relief, mm 14
Display
Type AMOLED
Resolution, pixels 1024x768
Range Performance
Detection range, m 1750
Video Recorder
Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16
Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529) IPX7
Operating temperature range, °C -25-+40
Connections and Compatibilities
Mount, type 1/4"
Supported Application Stream Vision 2
Power Supply
Output voltage, V 3.7
Battery type APS 5 Li-ion Battery Pack
Capacity, mAh 4900
Operating time on battery pack (at t=22°C), h * 7
External power supply, V 5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material Magnesium Alloy
Dimensions, mm 152x50x74
Weight, kg 0.3
