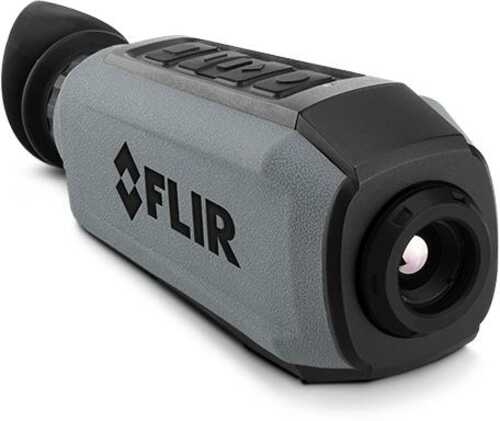

Flir Scion OTM230 Thermal Vision Monocular 320x240 9 Hz 18mm

The FLIR Scion™ OTM captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core the Scion OTM produces 9 or 60 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions maintaining reliable thermal imaging in the most demanding outdoor environments.

Specifications:

• Detector Type: 320 × 256
• Eye Relief: 16 mm
• Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
• Size: 227 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)
• Color (housing): Gray / Black
• Lens System: 18 mm
• Optical Magnification: 1.9x
• Display Focus: Manual
• Core Technology: BOSON 12 µm Vox Microbolometer
• Bluetooth: Ble 4.1+
• Usb: USB-C; Power In; Video Out; Video and Image File Transfer
• Geo Positioning [GPS]: Yes
• Video Recording: Yes
• WiFi: Video Streaming File Transfer
• Digital Zoom: 1X | 2X | 4X
• Field of view (FOV): 12° × 9°
• Refresh Rate: 9 Hz
• Mounting: ¼-20 Tripod Mount
• Weight: Without Batteries: 452 g; With Batteries 572 g
• Auto Power Off: Yes
• Battery Life: Up to 4.5 hours at 20°C
• Battery Type: 6x CR123A 3V Lithium Battery
• Display: Quad-VGA (1280x960) High definition display
• Image Capture: Yes
• Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
• Viewing Modes: Scouting Picture-in-Picture
• Picture While Recording: Yes
• Real Time Clock: Yes
• DateTime Stamp: Yes
• Magnetic Compass: Yes
• Accelerometer: Yes
