Taurus Tracker Scope Mount

Taurus Tracker Scope Mount

Color: Silver
Make: Taurus
Make/Model: Taurus|Tracker
Material: Aluminum
Model: Tracker
Number Of Bases: 1-Piece
Style: Weaver-Style Bases


Manufacturer: Weigand Combat
Model:

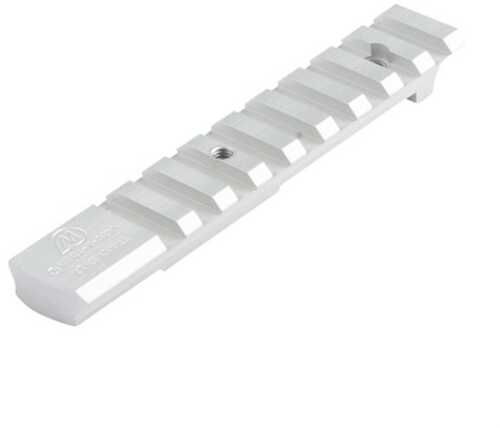

Red dot scope base rail for Taurus Tracker 17 992 with vent rib barrel

A scope base rail in stainless silver finish for the above listed Taurus revolvers. The rail has 11 ring slots which make it easier to set up eye relief and find more desired placement of scopes or red dot sights on top of the revolver. No drilling is needed. The scope rail is clamped onto the vent rib on the barrel using the hex screws and two steel tabs. The steel tab goes through the openings underneath the vent rib and clamp down by tightening the hex screws. Top rail is compatible with weaver style rings and also will mount red dot sights with weaver style mount. Machined from extruded aluminum alloy. Mounting screws are included with the unit.
Rail type: weaver
Number of ring slots: 11
Overall length: 4 1/2”
Finish: Anodized matte stainless silver
Weight: 1.6oz
* When mounting the rail onto the revolver, check alignment of the rail to the center line of barrel before tightening the clamping screws. Using blue thread locker is recommended and check on the screws periodically as they might become loose due to recoil.
* If the tips of screws are touching barrel surface after tightening, add a #6 split lock washer under the screw head
