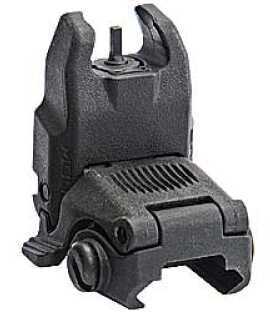

The MBUS (Magpul Back-Up Sight) is a low-cost, color injection molded, folding back-up sight.
The MBUS Front Sight is adjustable for elevation and fits most 1913 Picatinny-railed hand guards, but is specifically tailored to the AR15/M16 platform.
Made in U.S.A.
Features:
- Impact resistant polymer construction provides light weight and resists operational abuse
- Spring-loaded flip up sight easily activated from either side or by pressing the top
- Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
- Clamps to most any MIL-STD-1913 Picatinny/STANAG 4694 railed hand guard and provides the same height-over-bore as standard A2 irons
- Protective wings shield the spring-locking A2 front sight post
- Elevation adjustment tool included, but most aftermarket A2 front sight adjustment tools may be used as well
Specifications:
- Weight, w/ hardware: 1.2 oz.
- Height above rail, stowed: ~0.51 in.
- Length, stowed: 2.6 in.
- Length, deployed: 1.5 in.
NOTE: Cannot be mounted to a railed gas block due to excess heat issues.
Front MBUS must be mounted to a railed fore end on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.
Specification | Value | |
---|---|---|
MFG NO | 247-BLK | |
SKU | 1297230 | |
UPC | 873750004310 |
Magpul Industries | ||
Phone: | ||
Email: | magpul@magpul.com | |
Website: | http://www.magpul.com | |
Address: |
1011 Carbon Ct Boulder, CO 80308 |
Quantity Available | Price |
---|---|
4 | $25.81 |
50 | $30.23 |
1887 | $31.53 |
705 | $32.36 |
