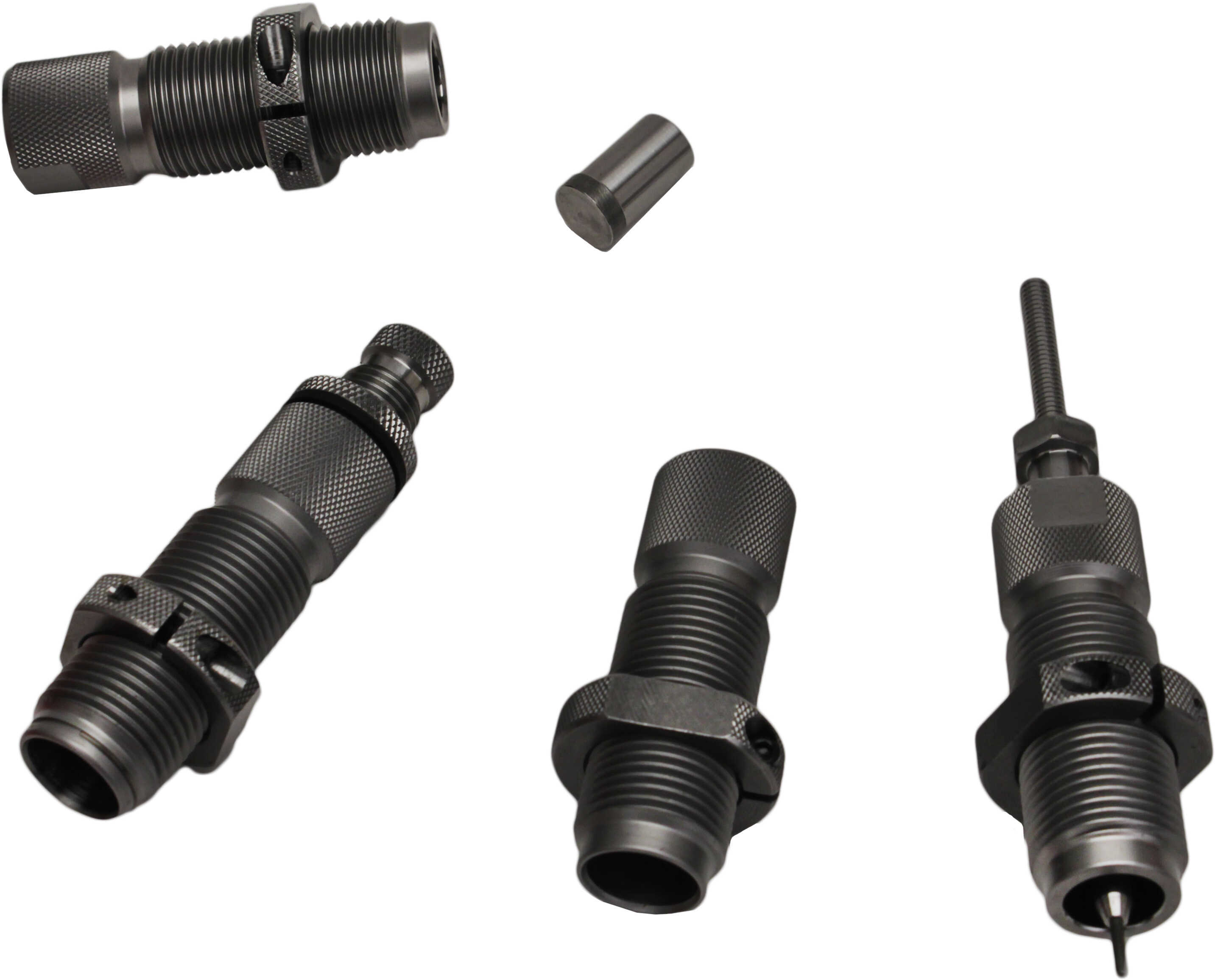

Custom-Grade rifle dies begin as specially selected steel that's hand-inspected both before and after it's delivered. The steel is then heat-treated to ensure the durability needed to provide a lifetime of reloading. Then the inside surface of each sizing die is carefully hand-polished to a mirror finish. The result is a die so smooth, guaranteed to never scratch a case. Before assembly, every part of every die is hand-inspected and a protective coating is applied to prevent moisture damage during shipping. The result is the most advanced reloading die set available today.
Elliptical Expander significantly reduces the friction and case-neck stretch associated with other expanders. It threads on so it can't pull loose and eliminates the need for a separate expander die for "necking up" to the next larger caliber. Sliding, In-Line Seating System assures in-line benchrest alignment of every bullet seated. The sliding sleeve vertically pre-aligns the bullet with the case-neck as they enter the die body. As the cartridge is raised, the bullet contacts the floating steel seating stem and is kept in perfect alignment as it's being seated.

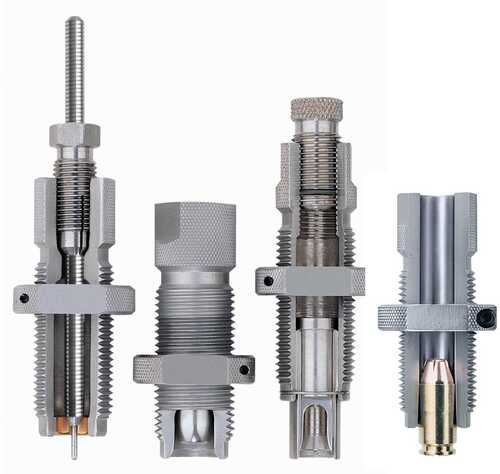

Every Custom-Grade New Dimension die set comes in a convenient box which lets you store fully adjusted dies, Lock-N-Load bushings, shell holders and a taper crimp die. Wrench flats located on the die body make adjustments much easier and eliminate damage from adjusting dies with pliers. Spindle lock design aligns the expander spindle to perfectly center itself in the die. Provides tight tolerances and precise fit. Expander spindle improves alignment and enhances accuracy for smoother operation. A solid, one-piece rod guaranteed not to bend or break. Hardened-steel decap pin will not break, bend or crack, even when depriming cases with crimped primer pockets. Elliptical expander significantly reduces friction and case-neck stretch. Threaded and replaceable. Expander die flares the mouth of the case preparing it to receive a bullet. Precision ground and polished. Seater adjustment screw easily adjusts for bullet seating depths.
All-steel construction provides added strength and reduces thread wear. In-line bullet seating system includes a floating bullet alignment sleeve, floating steel seating stem and a built-in crimper for benchrest precision when seating bullets. Bullet seater alignment sleeve guides the bullet and case-neck into the die. The free-floating sleeve design assures benchrest alignment every time. Floating steel seating stem assures consistent alignment with a universal design that better seats more bullet profiles. Built-in crimper gives you the option of crimping without an extra crimp die. Sure-Loc lock rings lock the die into position and provide precise adjustment. Locking screws stay free from threads. Features wrench flats. Locking retainer spring removes in seconds for easy disassembly and cleaning of the die.
500 S&W
No reviews yet
Be the first to review this item.
