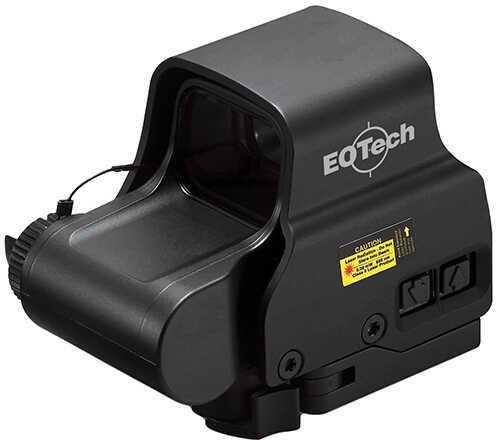

Offering true 2 eyes open shooting, a transversely mounted lithium 123 battery, and 7 mm raised base offering iron sight access, the new EXPS2 features easy to adjust side buttons and a single, quick release throw lever for easy attachment and removal.
- Reticle is a 65MOA circle with 1 MOA aiming dot
- Single transverse 123 battery to reduce sight length
- Shortened base only requires at most 2 3/4 inch of rail space
- Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
- Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
- Average battery life at brightness level 12 is roughly 600 hours
- Side buttons with a single quick detach throw lever
Operation:
- Optics: Transmission holography - parallax free
- Magnification: 1x
- Eye Relief: Unlimited
- Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)
- Weight: 11.2 oz (317grams)
- Temperature: -40 to 150 F
- Waterproof: Submersible to 10 ft depth
- Sealing: Fogproof internal optics
- Color/Finish: Non reflective black with hard coat finish
- Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
- Adjustment Range: +/- 40 MOA travel
- Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width variation
- Return to Zero: Repeatable to within 2 MOA after re-mounting
Heads-Up-Display Window:
- Optical Surfaces: Anti-glare coating
- Window Dimensions: 1.20" x 0.85" (30 x 23mm)
- Front Window Material: 1/8" solid glass
- Rear Window Material: Shatter resistant laminate (3/16" thick)
- Field of View (100 yds): 30 yds (28m) at a 4" eye relief
- Reticle: 65MOA ring with single 1MOA dot
Electrical:
- Brightness Adjustment Range: 146,000:1 brightest to lowest
- Power Source: (1) 123 lithium battery
- Battery Life: 600 continuous hours at nominal setting 12
- Brightness Settings: 20 settings with scrolling feature
- Auto Battery Check Indicator: Flashing reticle upon start-up
- Auto Shut-down: At 8 hrs- programmable to 4 hrs
Specification | Value | |
---|---|---|
MFG NO | EXPS2-0 | |
SKU | 75583 | |
UPC | 672294600275 |
EOTech | ||
Phone: | 734-741-8868 | |
Email: | general@l-3com.com | |
Website: | http://www.eotech-inc.com | |
Address: |
1201 E Ellsworth Ann Arbor, MI 48108 |
Quantity Available | Price |
---|---|
319 | $645.00 |
