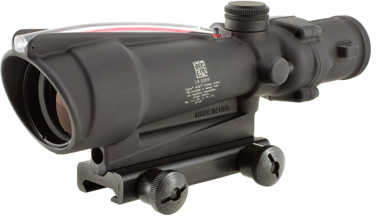

Trijicon ACOG 3.5x35 Illuminated Red Chevron 223 Reticle w/ TA51 TA11F

ACOG 3.5x35 scope with Red Chevron BAC Reticle- The ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 800 meters. Includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.



The TA11F also includes :

- 1 Flattop Adapter for Military style Rail (TA51)

- 1 3.5x35 Scopecoat (TA63)

- 1 Lenspen (TA56)

- 1 Trijicon Logo Sticker (PR15)

- 1 ACOG BAC Manual

- 1 Warranty Card



Specifications :

- Magnification: 3.5x

- Objective Size: 35

- Bullet Drop Compensator: Yes

- Length (In): 8

- Weight (oz): 14.0 w/out mount

- Illumination Source: Fiber Optics & Tritium

- Reticle Pattern: Chevron

- Day Reticle Color: Red

- Night Reticle Color: Red

- Calibration: 0.223

- Eye Relief: 2.39

- Exit Pupil: 10

- Field of View (Degrees): 5.5

- Field of View @ 100 yards (ft): 28.9

- Adjustment @ 100 yards (clicks/in): 3

- Mount: TA51

- Mount Comes With: TA51

- Housing Material: Forged Aluminum

3.5x35 Illuminated Red Chevron 223 Reticle w/ TA51
