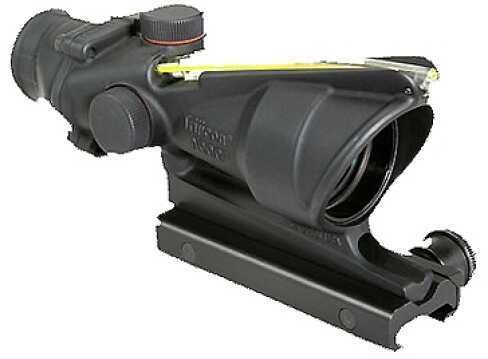

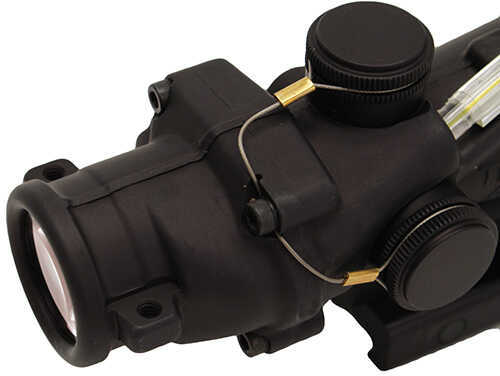

ACOG 4x32 Scope with Amber Chevron BAC Flattop Reticle- includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.
Features :
- Flattop Mount (TA51)
- 4x32 Scopecoat (TA64)
- Lenspen (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Specifications :
- Magnification: 4x
- Objective Size: 32
- Bullet Drop Compensator: Yes
- Length: 5.8"
- Weight: 9.9oz without Mount
- Illumination Source: Fiber Optics & Tritium
- Reticle Pattern: Chevron
- Day Reticle Color: Amber
- Night Reticle Color: Amber
- Calibration: 0.223
- Eye Relief: 1.5
- Exit Pupil: 8
- Field of View (Degrees): 7
- Field of View @ 100 yards (ft): 36.8
- Adjustment @ 100 yards (clicks/in): 2
- Mount: TA51
- Mount Comes With TA51
- Housing Material: Forged Aluminum
Dual Amber Chevron .223 Ballistic
