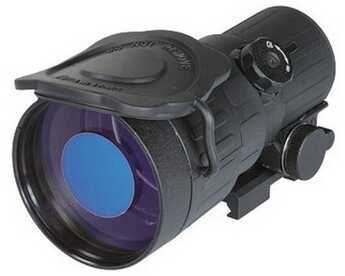

ATN PS22 WPT NVDNPS22W0

The ATN PS22-WPT is an attachment for a Daytime Riflescope with 1x Magnification that converts the Scope into a high-quality very accurate Night Vision Weapon Sight. The ATN PS22-WPT mounts in front of a Daytime Scope. Re-zeroing of the scope is not required. The ATN PS22-WPT comes standard with 7/8" weaver mount. There is also Adapter for ARMS quick release mount, optional Ring Adapters allows to mount unit onto the objective of the Day Scope (25...62mm diameter). The IR Illuminator can be mounted onto the optional Picatinny Rail. This ingenious setup allows the shooter to go from day to night in less then 30 seconds without tools, without changes in eye relief and remain zeroed all around the clock. The ATN PS22-WPT is a complex optical-electronic system. The Night Vision Device contains an Image Intensifier Tube assembly with an integrated high voltage power source and the three volt battery housing.

Features:

- Easily changes daytime scope to Night Vision
- Mounts in front of the daytime scope, no re-zeroing required
- Multi-coated all-glass optics
- Fast catadioptic front lens system
- Large 21 mm output window
- Lightweight and rugged
- Comes with Quick Release Mount
- Optional 7/8” weaver mount
- Optional Scope Mounting System attaches the PS22 unit to the objective of the day scope (25...62 mm diameter)
- Automatic brightness control
- Resistance to severe conditions
- Up to 60 hours of continuous operation with one Lithium battery

Specifications:

- Total Darkness IR System: Yes
- "SMART" Technology: No
- IIT Generation: WPT
- Magnification: 1x
- Photocathode Type: Multi - Alkali
- Resolution: 45-54 lp/mm
- Signal to Noise Ratio: 16-24
- Figure of Merit: 1600 Typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Lens System: F1.44, 80 mm
- Proshield Lens Coating: Yes
- FOV: 13°
- Exit Pupil: 21 mm
- Range of Focus: 10 m to infinity
- Diopter Adjustment: No
- Controls: Direct
- Remote Control: Yes
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Infrared Illuminator: Detachable IR450
- IR Indicator: Yes
- Low Battery Indicator: No
- Power Supply: 1 x 3 V CR123A type battery
- Battery Life: 60 hrs
- Reticle System: No
- Windage & Elewation Adjustment: No
- Environmental Rating: Waterproof
- MIL-STD-810: Yes
- Operating Temperature: -40 to +50 °C
- Storage Temperature: -50 to +70 °C
- Dimensions: 150x80x72 mm 5.9"x3.2"x2.8"
- Weight: 0.64 kg / 1.4 lbs
