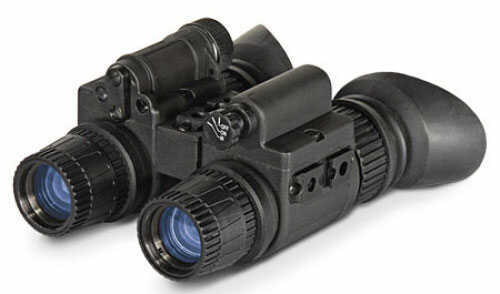

The ATN PS15-3A is a compact, lightweight dual Night Vision Goggles system. It utilizes two high-performance Image Intensifier Tubes to provide extremely clear and crisp images under the darkest conditions. This dual-tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment.
Available in a wide array of Image Intensifier Tube configurations. Night Vision Goggles is designed to handle every budget and mission requirement. The ATN PS15-3A Night Vision System is a high-performance choice!
Features :
- Dual goggle/binocular
- Hands Free use
- Comfortable, flip-up Head gear
- Lightweight, Compact
- Depth Perception
- Optional powerful 3x A focal lenses to make into binocular
- Waterproof
Specifications :
- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation: 3
- Photocathode Type: Thin Film GaAs
- Resolution: 64-72 lp/mm
- Signal to Noise Ratio: 26 Typical
- Figure of Merit: 1800 Typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 27 mm
- Proshield Lens Coating: Yes
- Fov 40°
- Range of Focus: 0.25 m to infinity
- Diopter Adjustment: -6 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes (Built-in with flood lens)
- IR Indicator: Yes (in FOV)
- Low Battery Indicator: Yes (in FOV)
- Power Supply: 1x1.5 V AA type battery or
- 1x3 V CR123A type battery
- Battery Life: 40 hrs
- Environmental Rating: Waterproof
- MIL-STD-810 Complies
- Operating Temperature: -40 to +50 °C
- Storage Temperature: -50 to +70 °C
- Dimensions: 120x114x69 mm 4.7"x4.5"x2.7"
- Weight: 0.7 kg / 1.54 lbs
