ATN 6015-4 Gen 4 Multi-Purpose Night Vision System Model number NVMP601540

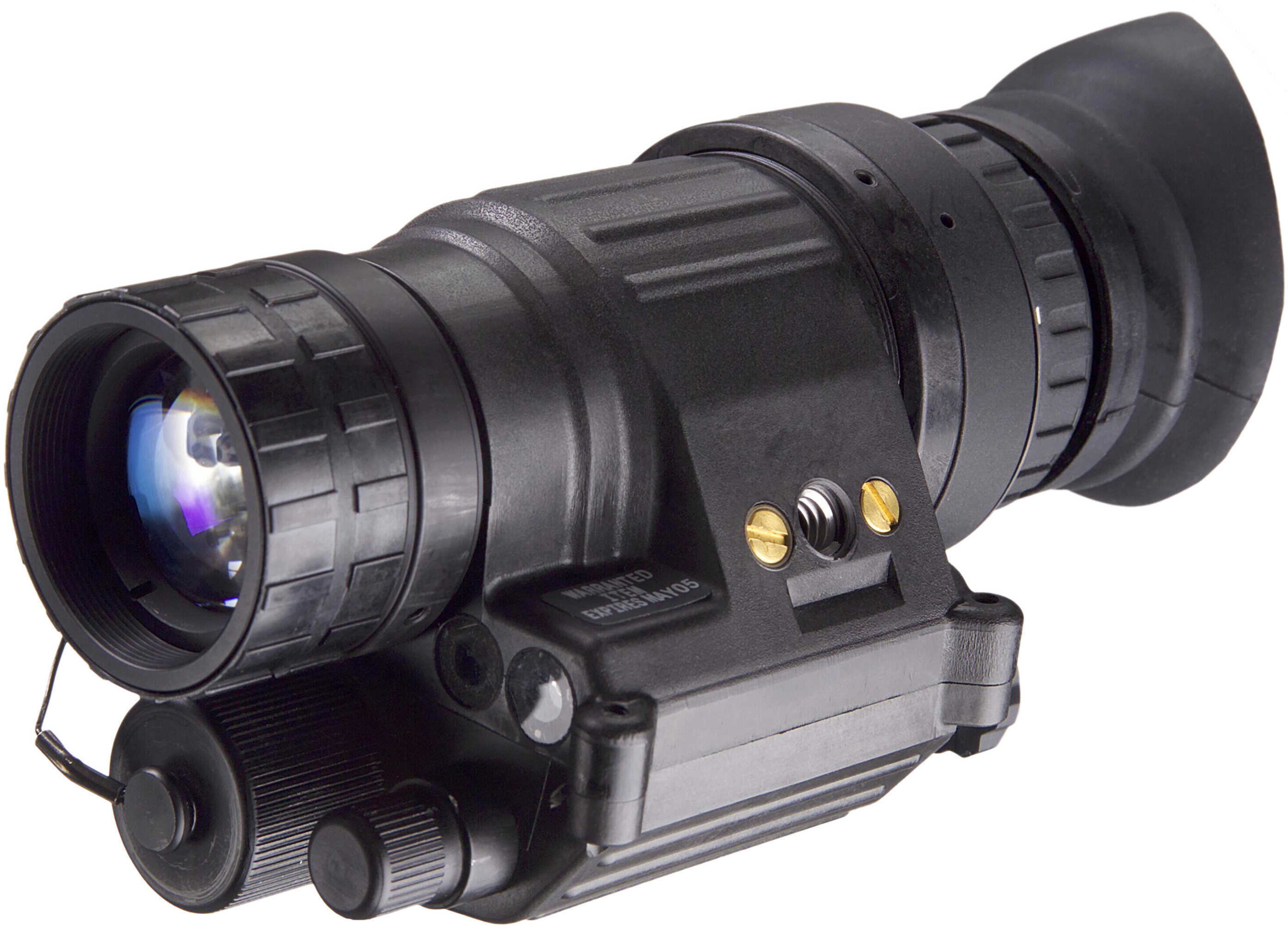

The ATN 6015-4 is a rugged, lightweight and versatile Night Vision Monocular designed for the most demanding of nighttime applications.

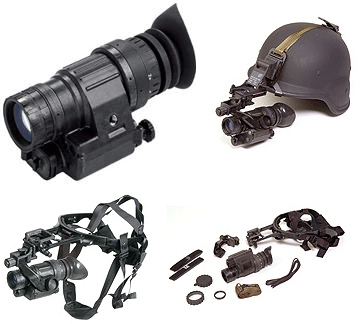

The ATN 6015-4 can be handheld, head/helmet-mounted for hands free usage or adapted to cameras/camcorders.

Based on the ATN PVS-14 used by the U.S. military the

ATN 6015-4 Scope

is of the highest quality in optics, design and functionality.

The ATN 6015-4 is a versatile high quality,

Multi-Purpose Monocular

and is an outstanding choice for professional Night Vision applications.



Features :

- US Military design

- Multi-Purpose unit

- Handheld monocular

- Hands-free goggle (optional helmet mount)

- Mil-Spec headgear



Specifications :

- Total Darkness IR System: Yes

- "SMART" Technology No

- Multi-Purpose System Yes

- IIT Generation 4

- Photocathode Type Filmless GaAs

- Resolution: 64-72 lp/mm

- Signal to Noise Ratio 25-30

- Figure of Merit 2000 Typical

- MTTF - Mean Time Before Failure 10,000 hours

- Magnification 1x

- Lens System F1.2, 26 mm

- Proshield Lens Coating Yes

- Fov 40°

- Range of Focus 0.25 m to infinity

- Diopter Adjustment -5 to +2

- Controls Digital

- Automatic Brightness Control Yes

- Bright Light Cut-off Yes

- Automatic Shut-off System Yes

- Infrared Illuminator Yes

- IR Indicator Yes

- Low Battery Indicator Yes

- Power Supply (1) 1.5 Volt AA size

- Battery Life 50 hrs

- Environmental Rating Waterproof

- MIL-STD-810 Complies

- Operating Temperature -40 to +50 °C

- Storage Temperature -50 to +70 °C

- Dimensions 114x56x50 mm 4.5"x2.2"x2"

- Weight: 0.3 kg / 0.68 lbs
