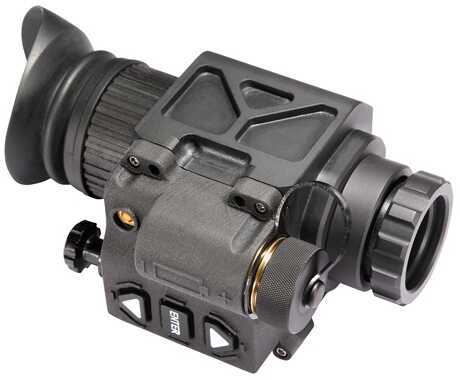

The OTS-X is the latest in our successful OTS thermal imager system line. The OTS-X series is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike.
The OTS-X is one of the most affordable thermal viewers on the market that includes a full 320x240. One of the most unique features is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.
Features :
- Resolution 320 x 240
- Ergonomic Design
- Enhanced Imaging (60hz)
- Compact Rugged Construction
- Interchangeable Optics
- E-Zoom
- Variable Geometry Display
- Digital Brightness Control
- Icon Based Menu System
- Color Modes
- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- Made in USA
Specifications:
- Sensor (micro-bolometer): 320 x 240
- Type: Uncooled
- Material: Vanadium oxide (VOx)
- Image Size (output resolution): 800x600
- Frame rate: 60 Hz
- Video output: Analog RS-170
- Lens: 14 mm
- Display: Color OLED matrix, SVGA< 800x600
- Thermal Sensitivity: <50mK
- Spectral Response: 7-14 µm
- Field of View: 25°
- Eye Relief: 27 mm
- Diopter Adjustment: -1.5
- Optical Magnification: 1X
- E-Zoom: 2X, 4X
- Human Detection: 500 m
- Human Recognition: 225 m
- Human Identification: 135 m
- Vehicle Detection: 1100 m
- Vehicle Recognition: 495 m
- Vehicle Identification: 300 m
- Polarity control: White hot / Black hot / Multiple Color Modes
- Start up time: <4 sec
- Waterproof: Yes
- Battery type: 1 x CR123A battery type
- Battery Life: 2+ hrs
- Weight: 0,83 lb /375 grams
- Dimensions: 100 x 61 x 83 mm / 4 x 2.4 x 3.3"
E314, 14mm, 60Hz
