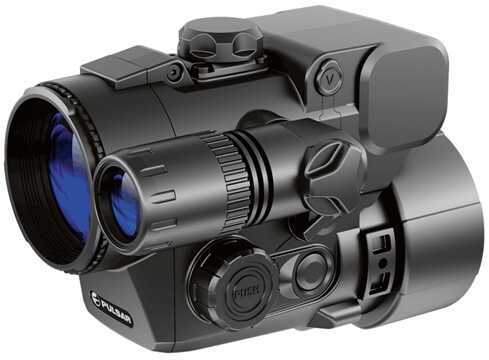

Fast and easy conversion of a day optical sight into a night vision riflescope
Features :
- High contrast frost-resistant OLED display
- Attachable laser IR illuminator
- Wide range of operation temperature
- Video Out
- External power supply
- Wireless remote control
- Wide operating temperature range
- Convenient display of service information
- Attachable invisible laser IR illuminator
- Image set-up options
- Forward DFA as NV attachment
- Forward DFA as observation device
Specifications :
Electronic components :
- Type of CCD array, CCIR: Sony ICX-255AL
- Camera resolution, pixels (CCIR): 500x582
- Min/max working illuminance, lux (f1.2, signal-to-noise ratio 20dB), lux: 0.0001...30000
- Display type: OLED
- Display Resolution, pix.: VGA 640x480
- Video OUT availability: Analog
Optical characteristics :
- Magnification, x: 1 (of the digital module)
- Lens focus, mm: 50
- Relative aperture, D/f': 1:1
- Field of View,°, horizontal: 5
- Resolution, lines per mm: = 50
- Minimum focusing distance, m: 5
Built-in IR-illuminator :
- Emitter: Laser
- IR Wavelength, nm: 915
Range of Detection :
- Range of detection, m (object 1.7m high, illumination level 0.05 lux ("1/4 moon"): 400
Power Supply :
- Power Supply, V: 3.7÷6
- Battery type: 4xAA
- Battery Life (w/out IR), hour: 2
- Battery Life (with IR), hour: 1.5
- External Power Supply DC: 9 ÷ 15V / 3W
Physical & Operational Characteristics :
- Outer diameter of the lens housing of daylight scopes/riflescopes (possibility of using with a daylight optical scopes), mm: 47, 48, 49, 50, 55, 56, 57, 58, 60, 62, 65
- Operating Temperature,°?: - 20 … + 50
- Remote control: Wireless
- Shock resistance on rifled weapon, J: 6000
- Dimensions, mm: 155x82x117
- Weight (without batteries), kg: 0.56
- 10x32 Pulsar Monocular included: No
